Image may vary slightly
See specifications for accurate information.
Reference: F2D5K
Brand: Tameson

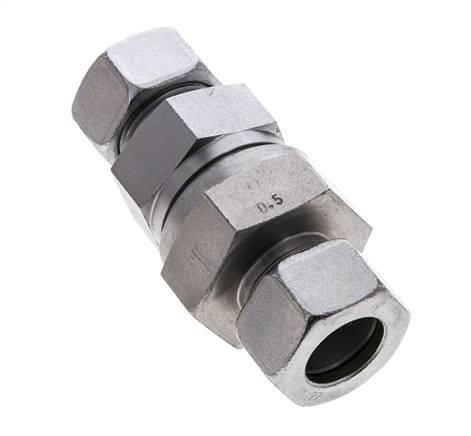

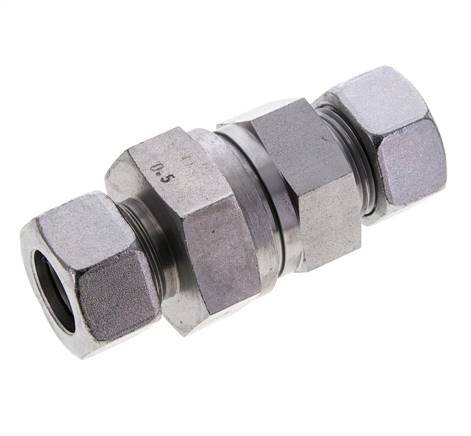

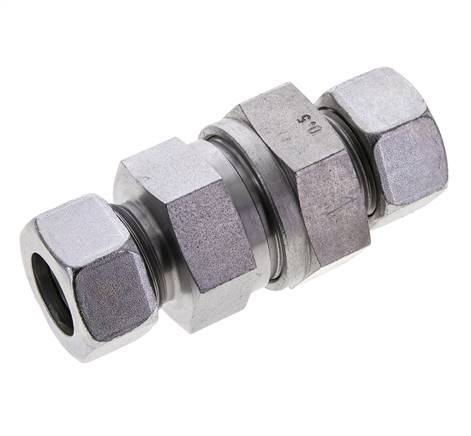

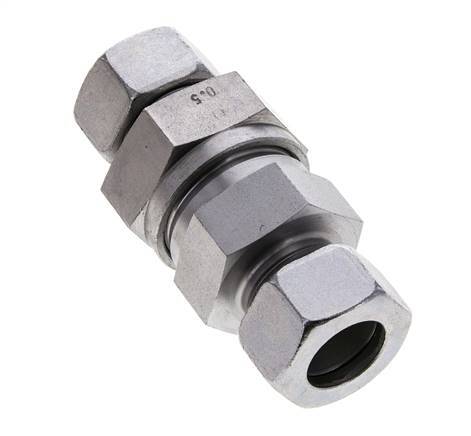

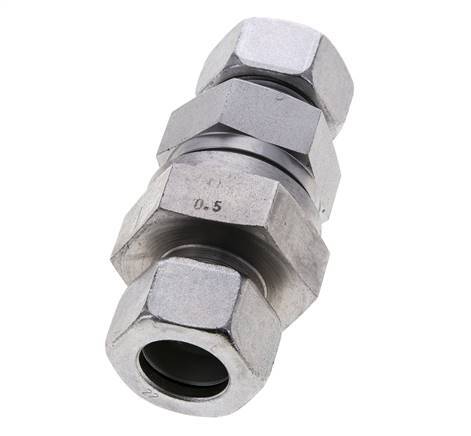

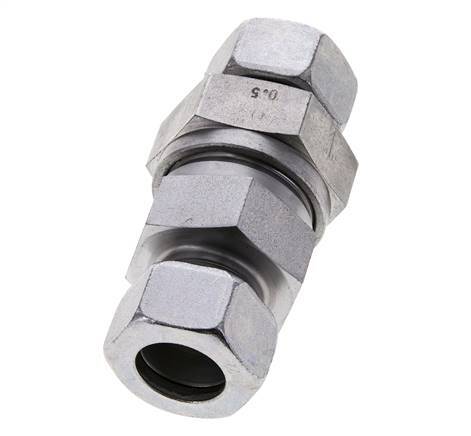

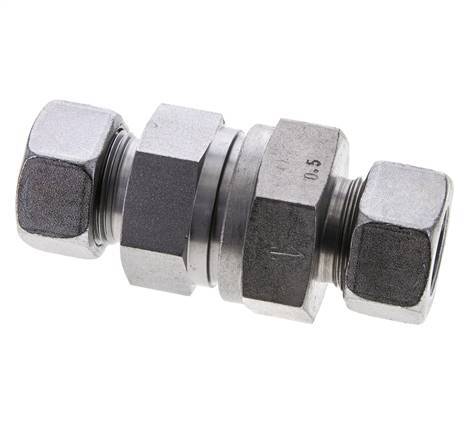

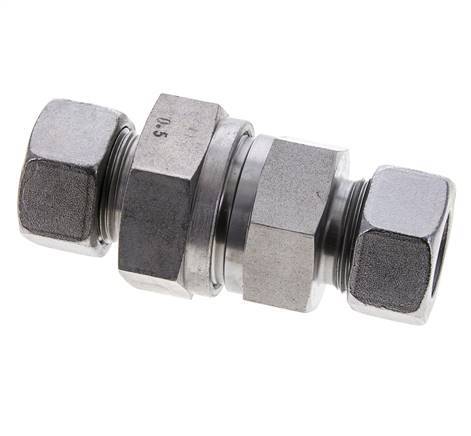

This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 22 mm cutting ring with a M30x2 union nut on both sides. Rated for L (light) load classes. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 0.5 to 160 bar (7 to 2320 psi). It is made in accordance with ISO 8434-1.

View all
$70.96 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 4 - 6 business days

We sell only to registered businesses

Customers rate us: 4.92 / 5

664 reviews at TrustedShops

Description
Specifications

Description

This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 22 mm cutting ring with a M30x2 union nut on both sides. Rated for L (light) load classes. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 0.5 to 160 bar (7 to 2320 psi). It is made in accordance with ISO 8434-1.

Pros:

  • Adheres to ISO 8434-1
  • Suitable for hydraulic applications

Specifications
