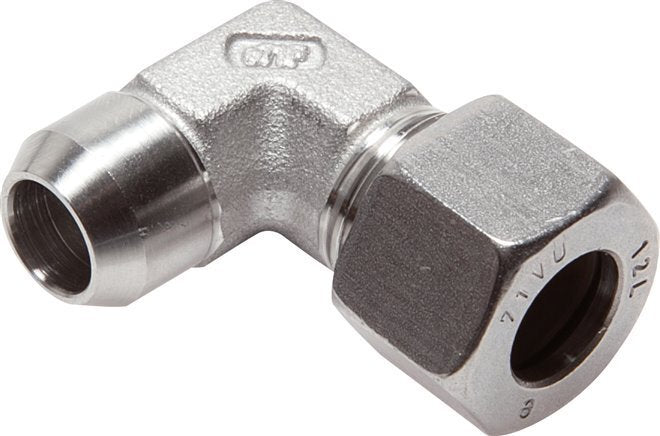

20S & 26mm Stainless Steel Elbow Compression Fitting with Welding End 250 bar ISO 8434-1

20S & 26mm Stainless Steel Elbow Compression Fitting with Welding End 250 bar ISO 8434-1
20S & 26mm Stainless Steel Elbow Compression Fitting with Welding End 250 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2CYY
Brand: Tameson

This stainless steel 1.4571 elbow screw in connection is designed with compression ring and welding connection ports. Connection 1 is a 20 mm compression ring with a M30x2 union nut. Connection 2 has a 26 mm welding connection. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
$163.16
excl VAT
In stock +0 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 0 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 2 - 3 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This stainless steel 1.4571 elbow screw in connection is designed with compression ring and welding connection ports. Connection 1 is a 20 mm compression ring with a M30x2 union nut. Connection 2 has a 26 mm welding connection. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Downloads

Specifications

Compression ring connection (mm)
Size of the compression connection port
20
Union nut thread
Thread size of the union nut
M30 x 2
Load class (DIN 2353)
S (heavy)
Welding connection (mm)
Outer pipe diameter
26
Connection type
Compression ring, Welding connection
Material
Housing material.
Stainless steel
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
250
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-60
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
400
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Quality of material
Stainless steel (1.4571)
Material connection 1
Stainless steel
Material quality connection 1
Stainless steel (1.4571)
Material connection 2
Stainless steel
Shape
Elbow
Bend angle (°)
90
With drain
No
