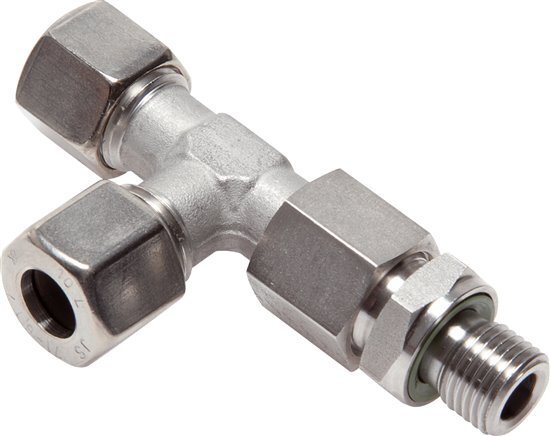

14S & G1/2'' Stainless Steel Right Angle Tee Compression Fitting with Male Threads 400 bar Adjustable ISO 8434-1

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. It has an adjustable connection. Connection 1 is a 14 mm compression ring with a M22x1.5 union nut. Connection 2 is a 14 mm compression ring with a M22x1.5 union nut. Connection 3 has male G 1/2 inch threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• It has adjustable connection
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications
