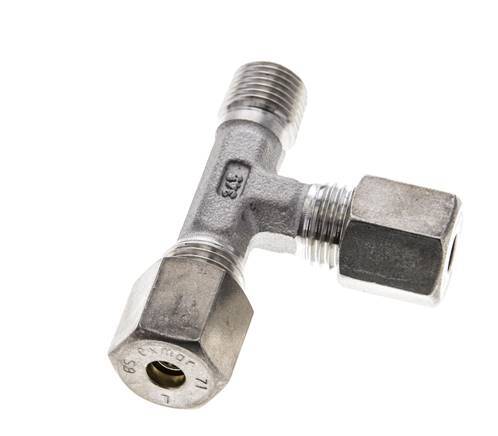

6S & R1/4'' Stainless Steel Right Angle Tee Compression Fitting with Male Threads 500 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2CHP
Brand:
Tameson

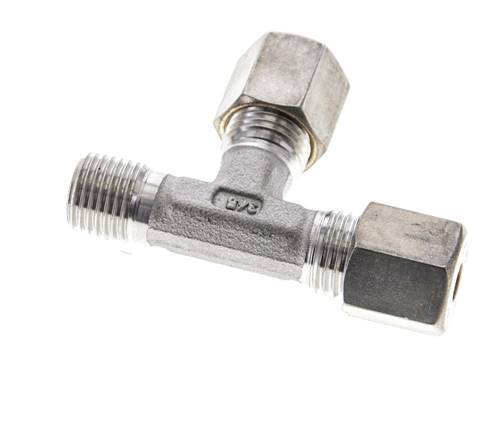

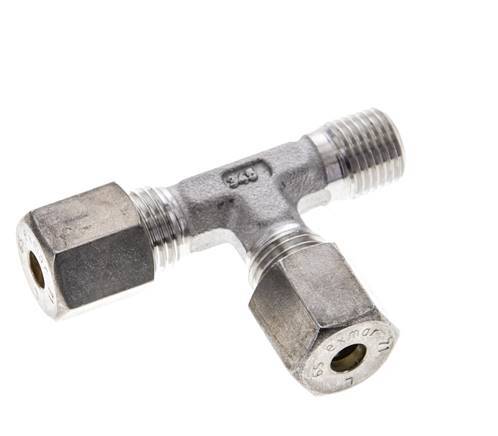

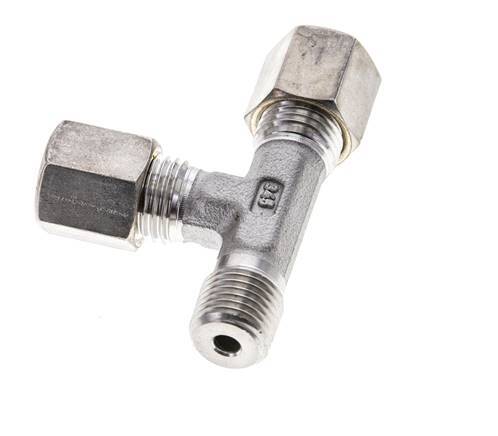

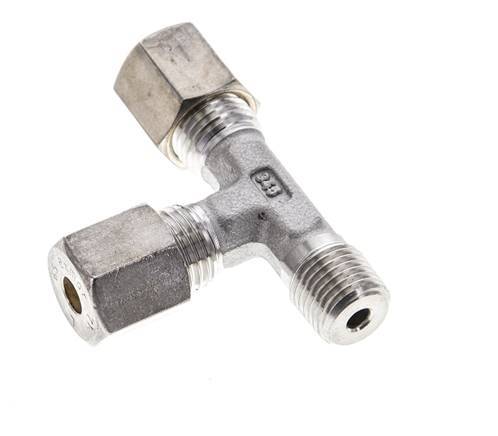

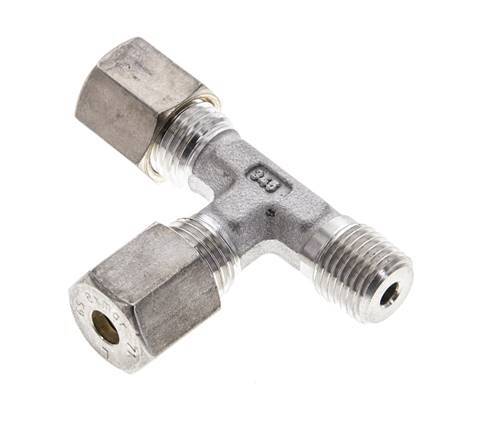

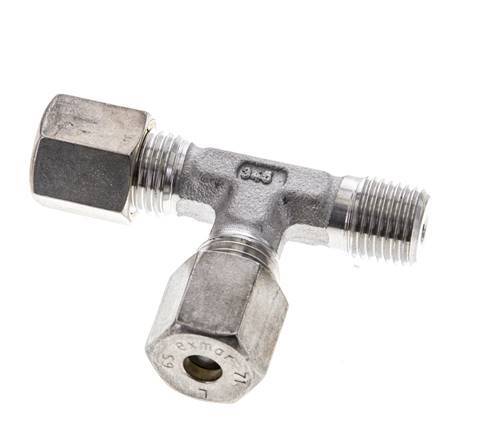

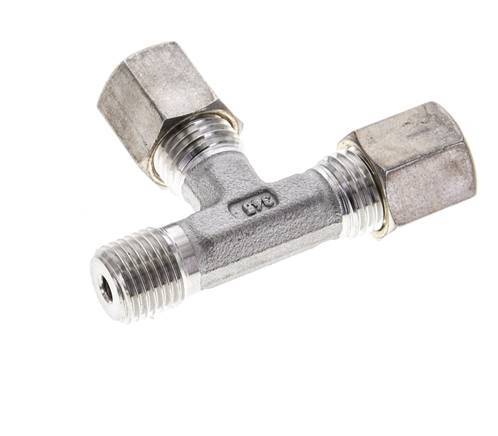

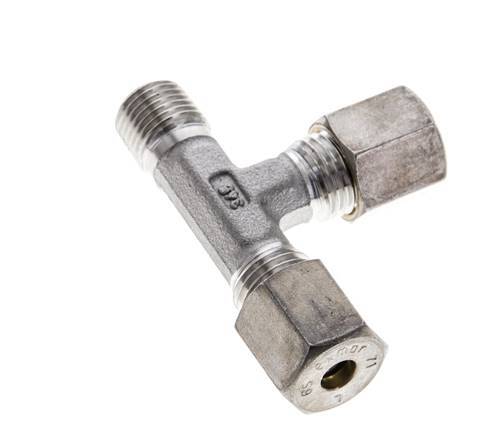

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a L-shape.
- Regular price
- $78.86 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days
We sell only to registered businesses
Description
Specifications
Description
This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. Connection 1 is a 6 mm compression ring with a M14x1.5 union nut. Connection 2 is a 6 mm compression ring with a M14x1.5 union nut. Connection 3 has male R 1/4 inch threads. The maximum pressure is 500 bar (7250 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
