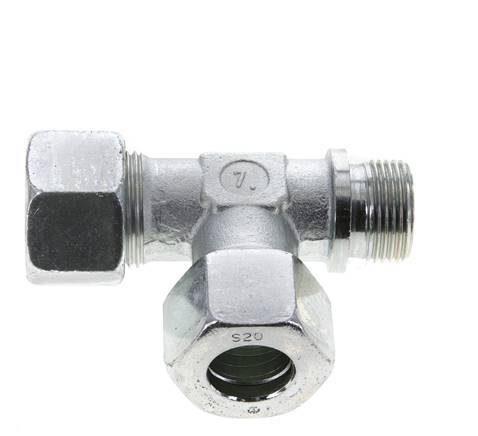

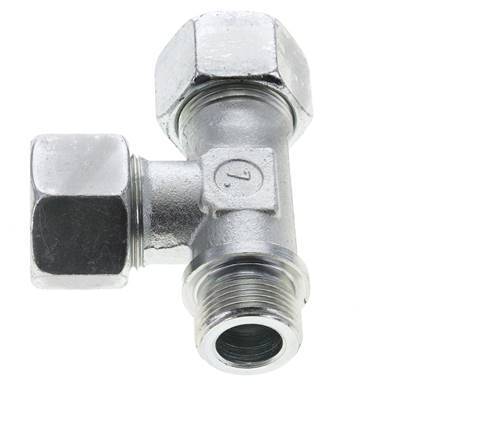

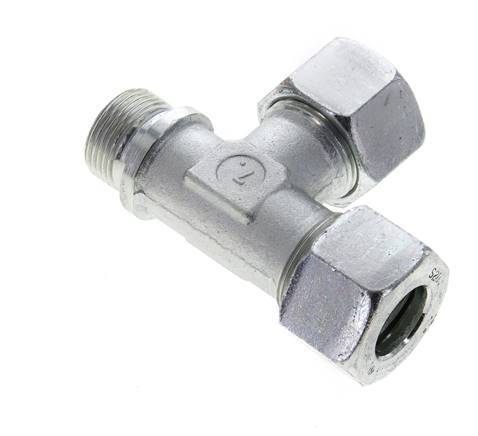

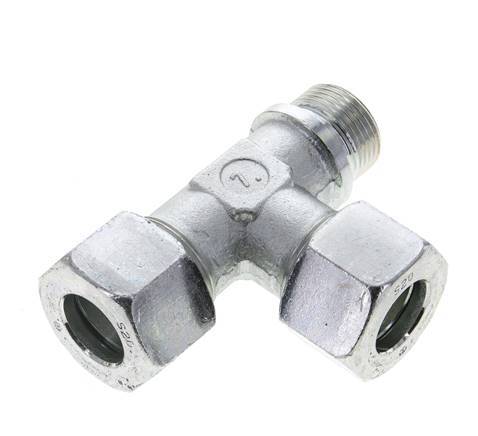

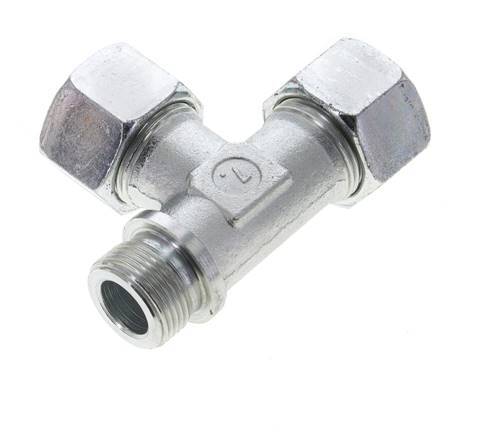

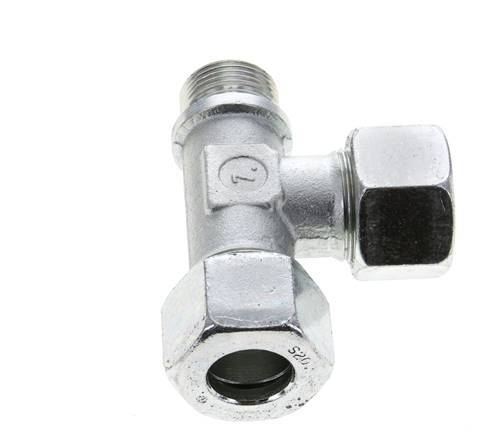

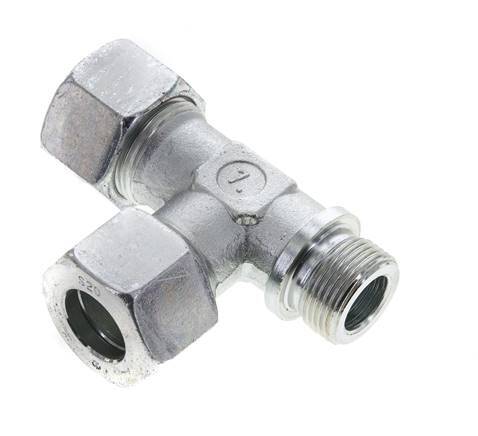

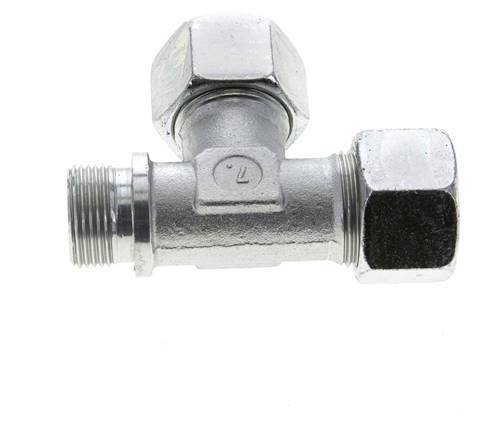

20S & G3/4'' Zink Plated Steel Right Angle Tee Cutting Fitting with Male Threads 400 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2CGJ
Brand:
Tameson
This zink plated steel Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a L-shape. Connecti
- Regular price
- €107,66
incl VAT
A VAT (value-added tax) is a goods and service tax that pertains to the European Union (EU). We, Tameson, are required by law to collect VAT for orders within the EU for customers that do not supply us with their VAT number.
- Regular price
- €86,13
excl VAT
Description
Specifications
Description
This zink plated steel Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a L-shape. Connection 1 is a 20 mm cutting ring with a M30x2 union nut. Connection 2 is a 20 mm cutting ring with a M30x2 union nut. Connection 3 has male G 3/4 inch threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for hydraulic applications
