6LL & R1/8'' Zink Plated Steel Right Angle Tee Cutting Fitting with Male Threads 100 bar ISO 8434-1

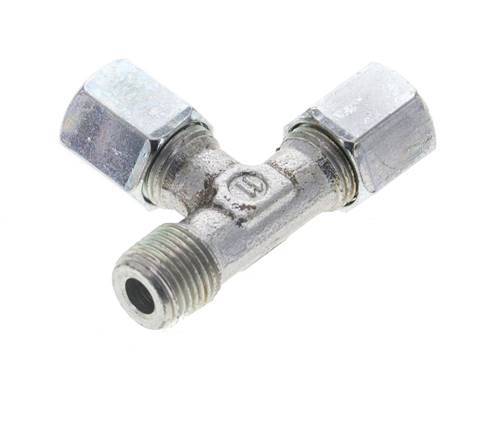

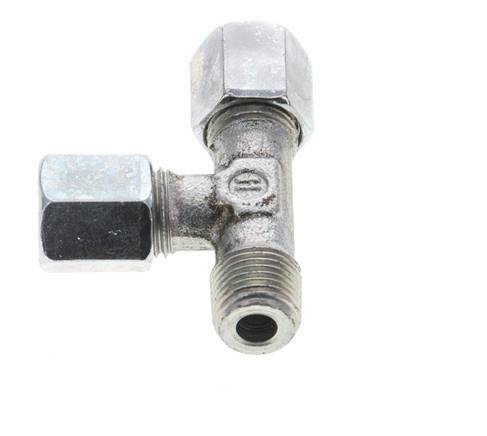

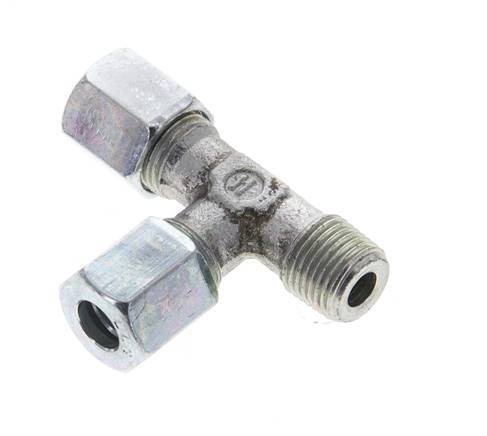

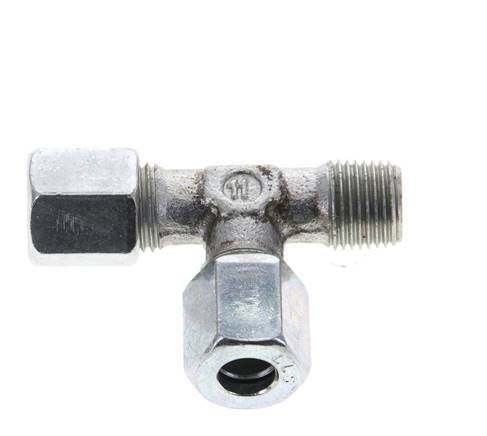

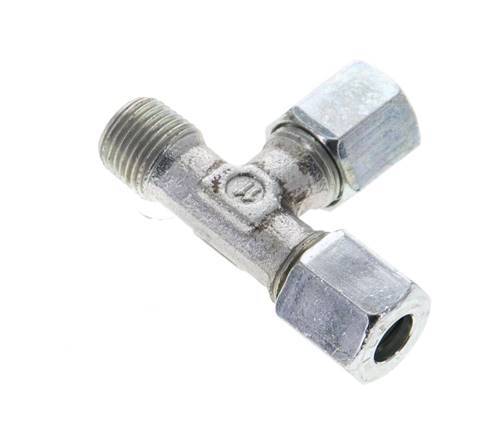

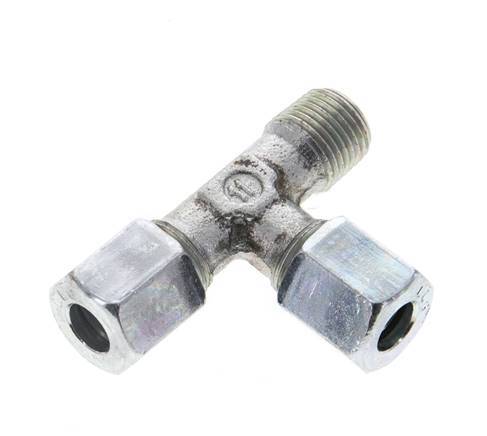

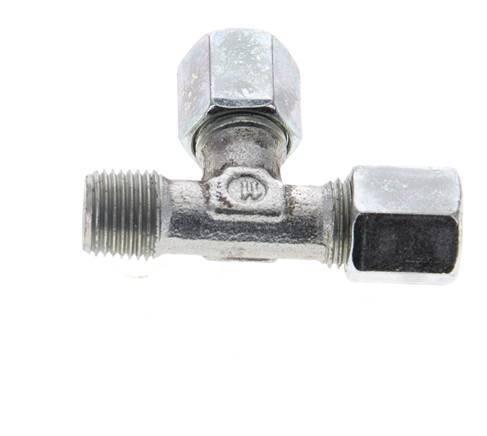

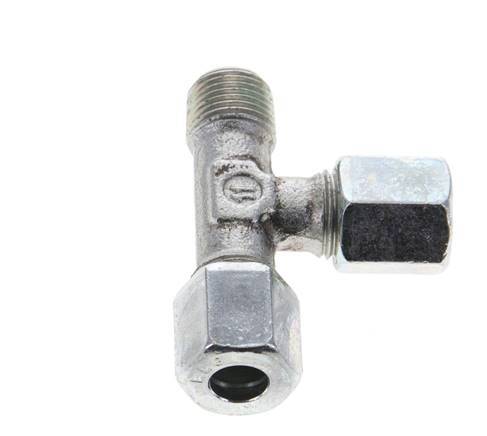

This zink plated steel Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a L-shape. Connection 1 is a 6 mm cutting ring with a M10x1 union nut. Connection 2 is a 6 mm cutting ring with a M10x1 union nut. Connection 3 has male R 1/8 inch threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• Suitable for hydraulic applications
