Image may vary slightly
See specifications for accurate information.
Reference: F2CDH
Brand: Tameson
This zink plated steel Tee screw connection is designed with three cutting ring connections in a T-shape. Connection 1 is a 22 mm cutting ring with a
View all
$70.38 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

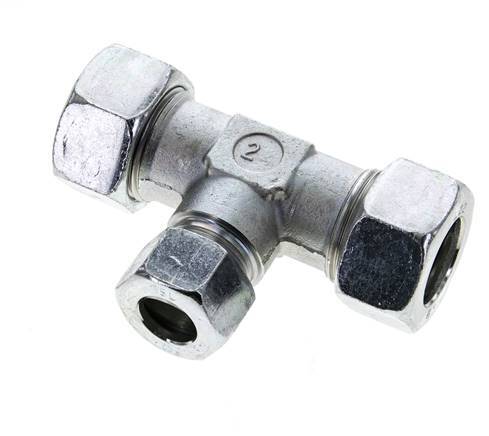

This zink plated steel Tee screw connection is designed with three cutting ring connections in a T-shape. Connection 1 is a 22 mm cutting ring with a M30x2 union nut. Connection 2 is a 15 mm cutting ring with a M22x1.5 union nut. Connection 3 is a 15 mm cutting ring. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for hydraulic applications

Specifications

Union nut threadi
M22 x 1.5, M30 x 2
Cutting ring connectioni
22 mm
Cutting ring connection smaller
15 mm
Load class (DIN 2353)
L (light)
Connection type
Cutting ring
Materiali
Steel
Fitting features
Reducing
Max pressure at 20 °Ci
160 bar
Min temperaturei
-40 °C
Max temperaturei
120 °C
tf000161i
TV000467
Model
T-piece
Material connection 1
Steel
Surface protection connection 1
Galvanic zink plated
Material connection 2
Steel
Surface protection connection 2
Galvanic zink plated
Material connection 3
Steel
Surface protection connection 3
Galvanic zink plated
With drain
No
