12L Zink plated Steel T-Shape Tee Cutting Fitting with Swivel 315 bar Adjustable ISO 8434-1

12L Zink plated Steel T-Shape Tee Cutting Fitting with Swivel 315 bar Adjustable ISO 8434-1
12L Zink plated Steel T-Shape Tee Cutting Fitting with Swivel 315 bar Adjustable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2CA3
Brand: Tameson

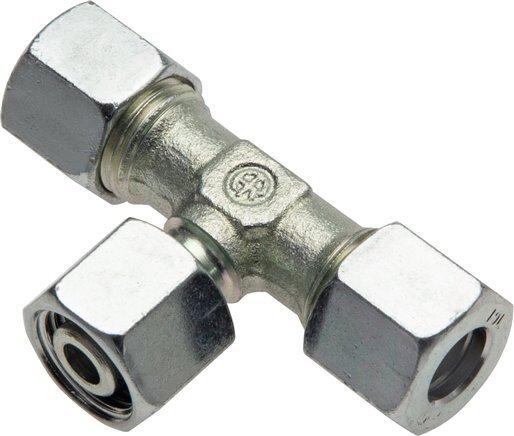

This zink plated steel Tee screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 3 has a 12 mm swivel tube connection. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
$16.31 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 120 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

This zink plated steel Tee screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 3 has a 12 mm swivel tube connection. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • It has adjustable connection
  • Suitable for hydraulic applications

Specifications

Union nut threadi
M18 x 1.5
Swivel tube connection
12 L
Cutting ring connectioni
12 mm
Load class (DIN 2353)
L (light)
Connection type
Cutting ring, Swivel tube connection
Materiali
Steel
Fitting features
Adjustable
Max pressure at 20 °Ci
315 bar
Min temperaturei
-40 °C
Max temperaturei
120 °C
Standardi
DIN EN ISO 8434-1 (DIN 2353)
Model
T-piece
Material connection 1
Steel
Surface protection connection 1
Galvanic zink plated
Material connection 2
Steel
Surface protection connection 2
Galvanic zink plated
Material connection 3
Steel
Surface protection connection 3
Galvanic zink plated
With drain
No
