6L & G1/8'' Zink plated Steel Tee Swivel Joint Cutting Fitting with Male Threads 315 bar NBR ISO 8434-1

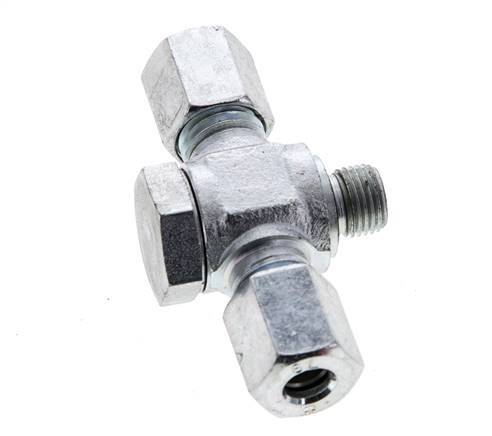

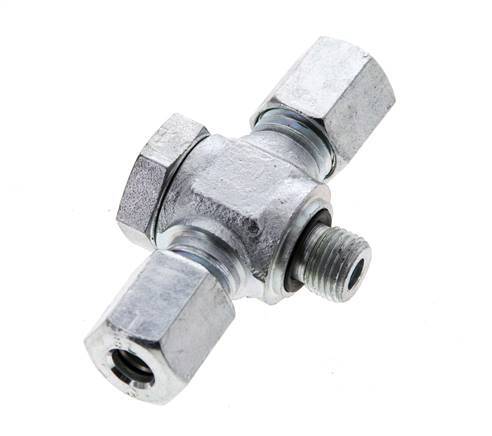

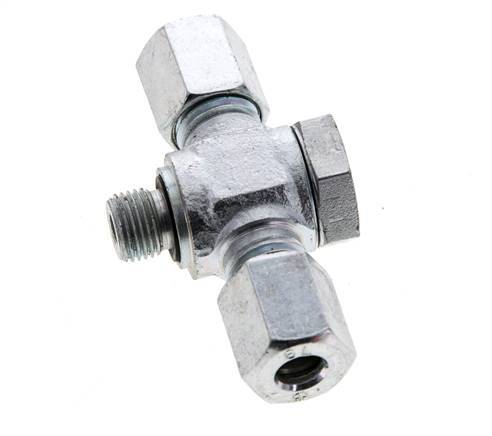

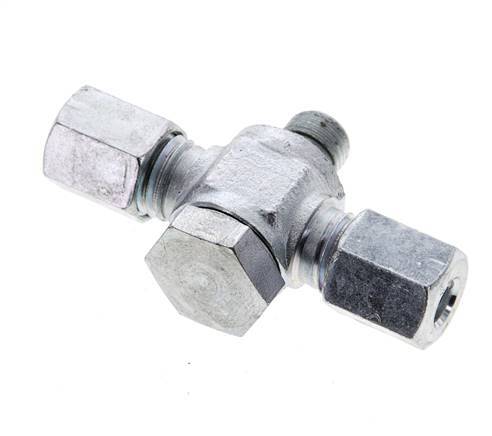

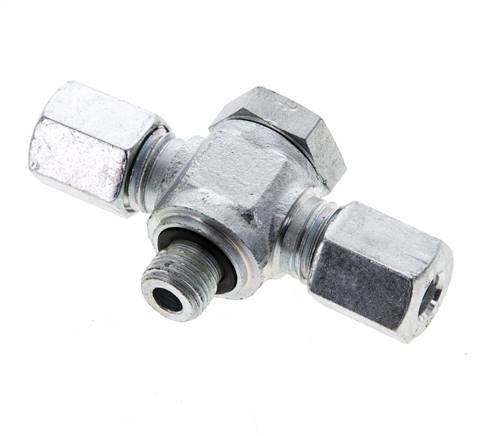

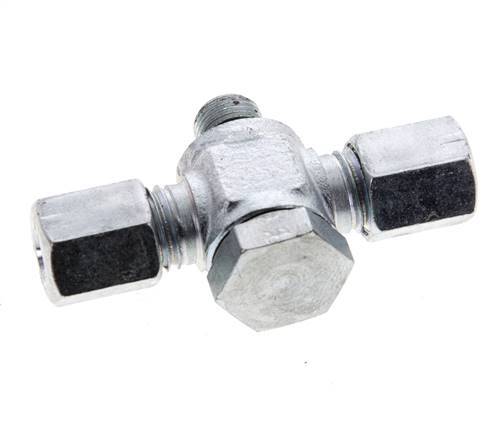

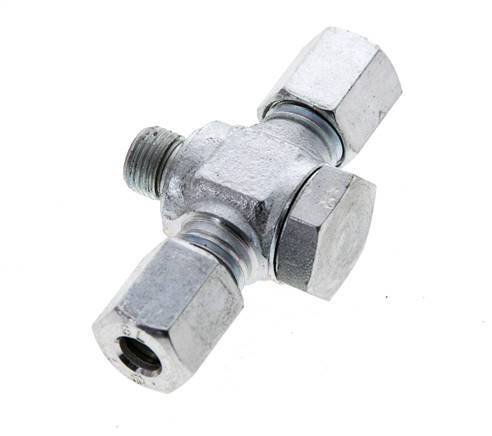

This zink plated steel Tee swivel joint is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 6 mm cutting ring with a M12x1.5 union nut. Connection 2 is a 6 mm cutting ring with a M12x1.5 union nut. Connection 3 has male G 1/8 inch threads. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $22.41
Description
This zink plated steel Tee swivel joint is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 6 mm cutting ring with a M12x1.5 union nut. Connection 2 is a 6 mm cutting ring with a M12x1.5 union nut. Connection 3 has male G 1/8 inch threads. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for hydraulic applications
