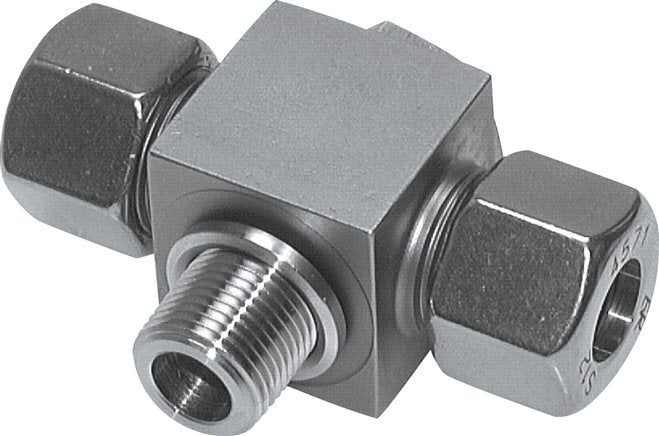

12S & M18x1.5 Stainless Steel Tee Swivel Joint Compression Fitting with Male Threads 400 bar ISO 8434-1

12S & M18x1.5 Stainless Steel Tee Swivel Joint Compression Fitting with Male Threads 400 bar ISO 8434-1
12S & M18x1.5 Stainless Steel Tee Swivel Joint Compression Fitting with Male Threads 400 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2C6R
Brand: Tameson
This stainless steel 1.4571 Tee swivel joint is designed with one male threaded connection and two compression ring connection ports in a T-shape. Con
View all
$439.73 USD
excl VAT
In stock Ships in 0d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 0 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 2 - 4 business days

We sell only to registered businesses
Description
Specifications

Description

This stainless steel 1.4571 Tee swivel joint is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 12 mm compression ring with a M20x1.5 union nut. Connection 2 is a 12 mm compression ring with a M20x1.5 union nut. Connection 3 has male M 18x1.5 threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for use in gas and water area
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Cons:

  • Since it has a compression ring connection, it can only be used once
