Image may vary slightly
See specifications for accurate information.
Reference: F2C5G
Brand: Tameson
This zink plated steel Tee swivel joint is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1
View all
$31.75 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 15 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

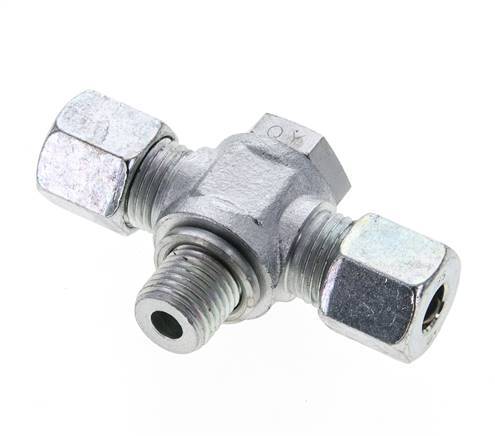

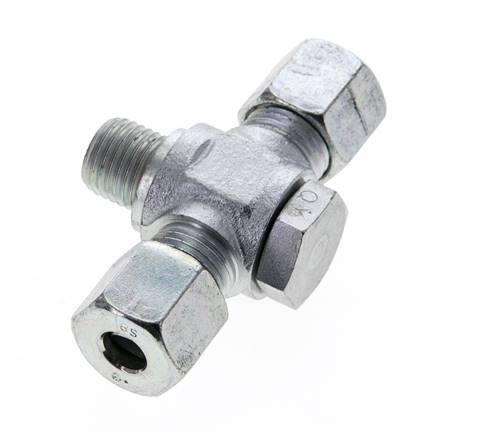

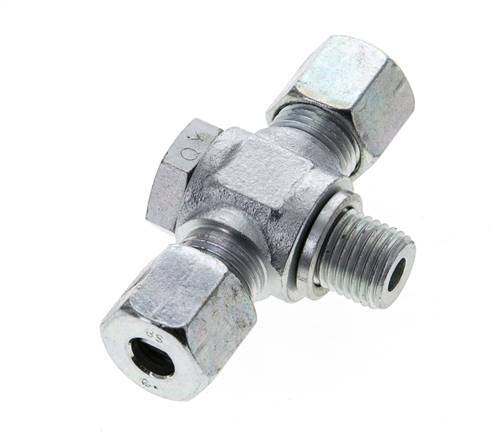

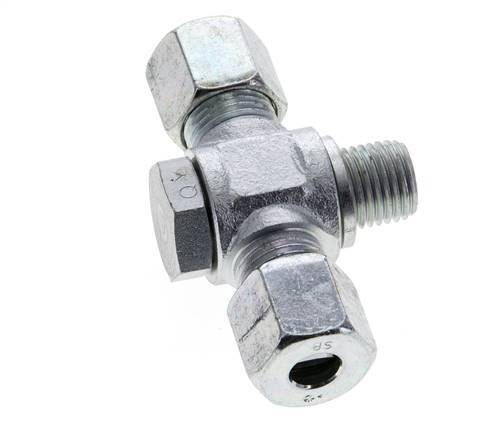

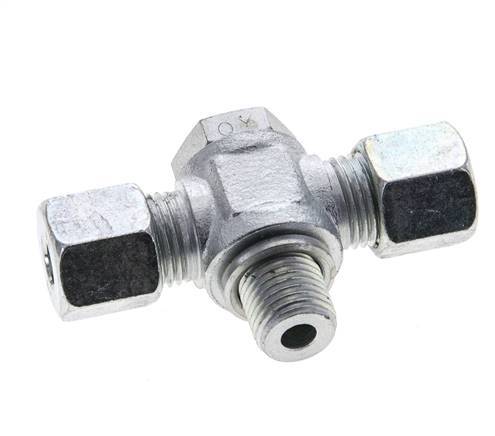

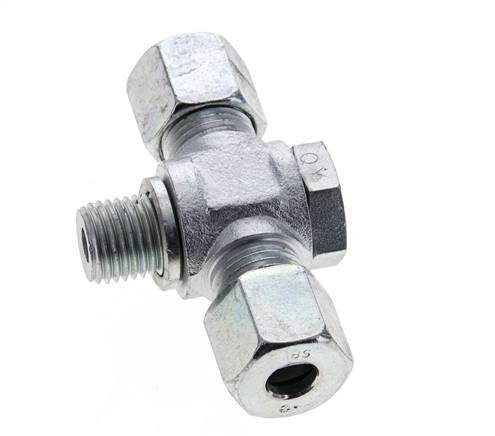

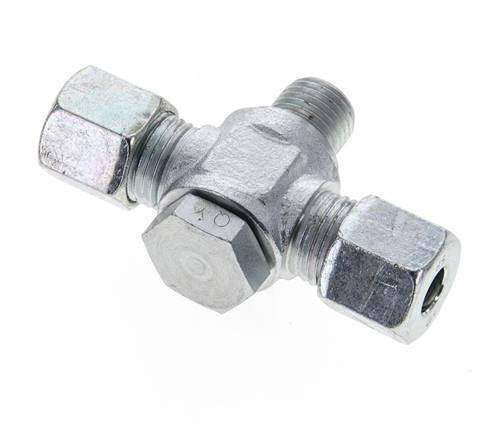

This zink plated steel Tee swivel joint is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 8 mm cutting ring with a M16x1.5 union nut. Connection 3 has male M 14x1.5 threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for hydraulic applications

Specifications

Thread
M14 x 1.5
Union nut threadi
M16 x 1.5
Cutting ring connectioni
8 mm
Load class (DIN 2353)
S (heavy)
Connection type
Cutting ring, Outer thread metric
Materiali
Steel
Max pressure at 20 °Ci
400 bar
Min temperaturei
-40 °C
Max temperaturei
120 °C
Standardi
DIN EN ISO 8434-1 (DIN 2353)
Model
T-piece
Material connection 1
Steel
Surface protection connection 1
Galvanic zink plated
Material connection 2
Steel
Surface protection connection 2
Galvanic zink plated
Material connection 3
Steel
Surface protection connection 3
Galvanic zink plated
With drain
No
