6L & M10x1 Stainless Steel T-Shape Tee Compression Fitting with Male Threads 315 bar Adjustable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2C2V
Brand:
Tameson

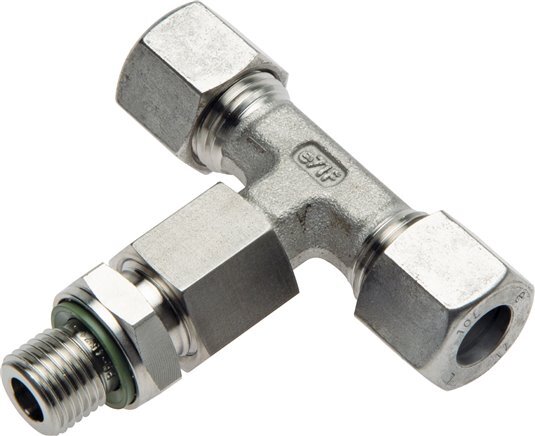

This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a T-shape.
- Regular price
- $113.79 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days
We sell only to registered businesses
Description
Specifications
Description
This stainless steel 1.4571 Tee screw connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. It has an adjustable connection. Connection 1 is a 6 mm compression ring with a M12x1.5 union nut. Connection 2 is a 6 mm compression ring with a M12x1.5 union nut. Connection 3 has male M 10x1 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
