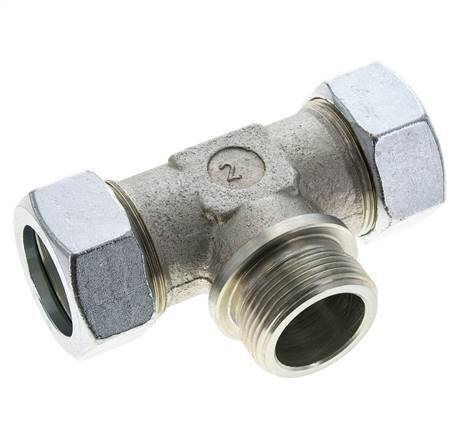

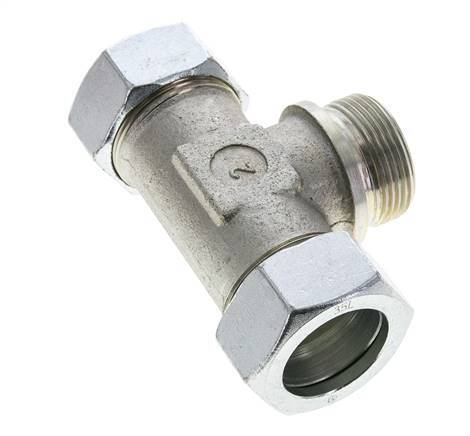

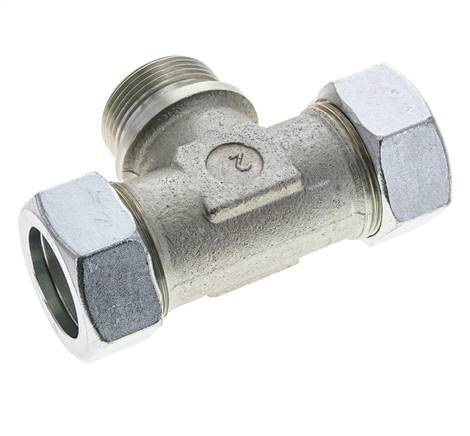

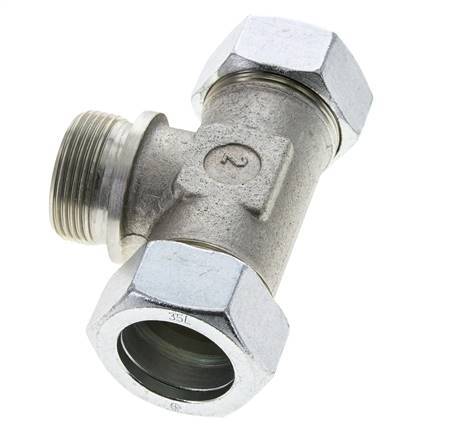

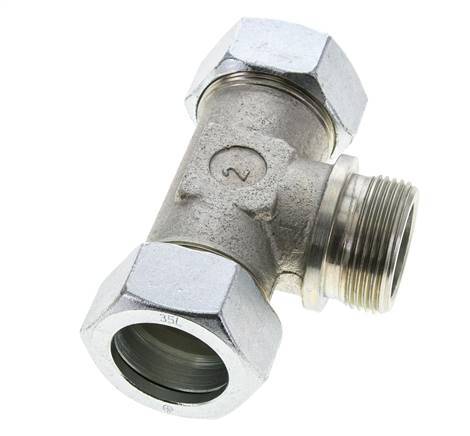

35L & G1-1/4'' Zink plated Steel T-Shape Tee Cutting Fitting with Male Threads 160 bar ISO 8434-1
This zink plated steel Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 35 mm cutting ring with a M45x2 union nut. Connection 2 is a 35 mm cutting ring with a M45x2 union nut. Connection 3 has male G 1-1/4 inch threads. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $158.83
Description
This zink plated steel Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 35 mm cutting ring with a M45x2 union nut. Connection 2 is a 35 mm cutting ring with a M45x2 union nut. Connection 3 has male G 1-1/4 inch threads. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for hydraulic applications
