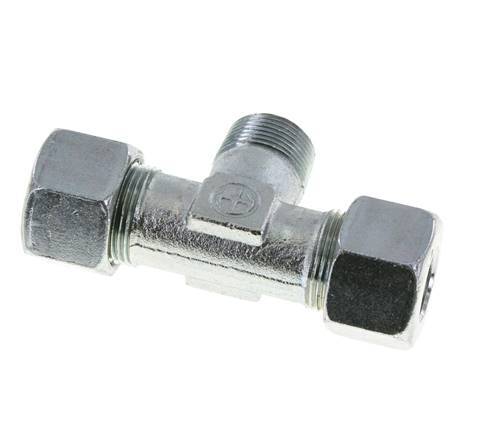

16S & M22x1.5 (con) Zink plated Steel T-Shape Tee Cutting Fitting with Male Threads 400 bar ISO 8434-1
This zink plated steel Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 3 has male M 22x1.5 (conical) threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $134.42
Description
This zink plated steel Tee screw connection is designed with one male threaded connection and two cutting ring connection ports in a T-shape. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 3 has male M 22x1.5 (conical) threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for hydraulic applications
