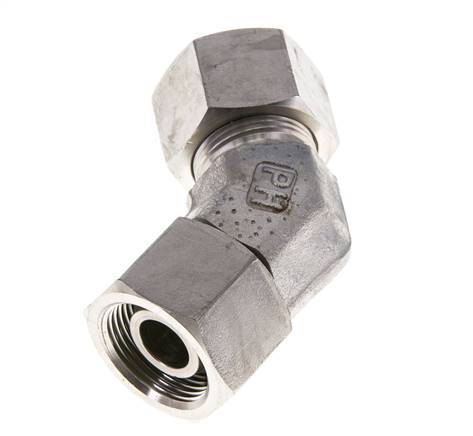

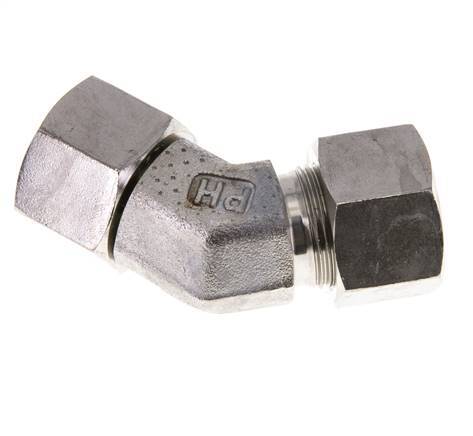

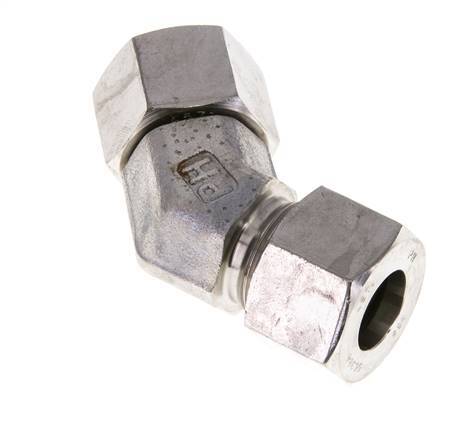

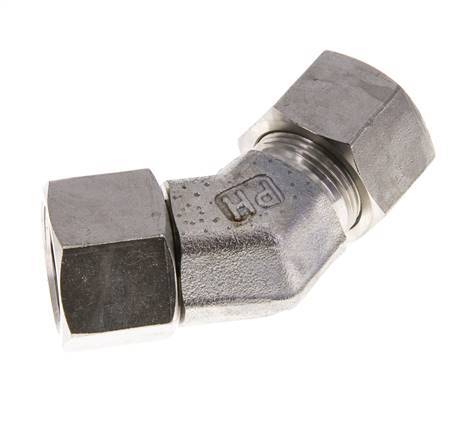

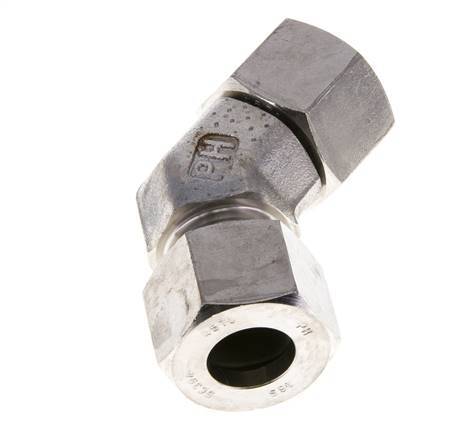

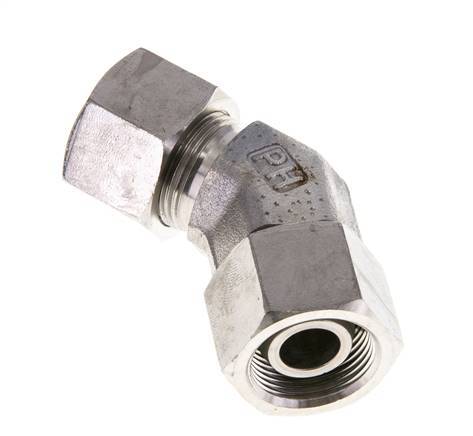

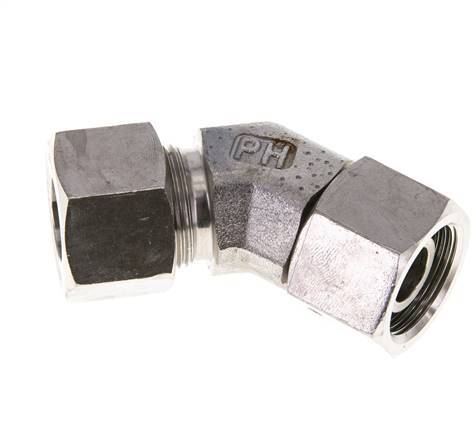

16S Stainless Steel 45deg Elbow Cutting Fitting with Swivel 400 bar FKM O-ring Sealing Cone Adjustable ISO 8434-1
This stainless steel 1.4571 elbow screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 has a 16 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is FKM. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $252.77 USD
We sell only to registered businesses
Description
This stainless steel 1.4571 elbow screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 has a 16 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is FKM. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- With O-ring and sealing cone
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
