14S & M20x1.5 Stainless Steel Swivel Joint Compression Fitting with Male Threads 400 bar Rotatable ISO 8434-1
Notice: This product will be discontinued in the future
Image may vary slightly
See specifications for accurate information.
Reference:
F2BNK
Brand:
Tameson
This stainless steel 1.4571 elbow swivel joint is designed with one male threaded connection and one compression ring connection port. The thread conn
Notice: This product will be discontinued in the future
Description
Specifications
Description

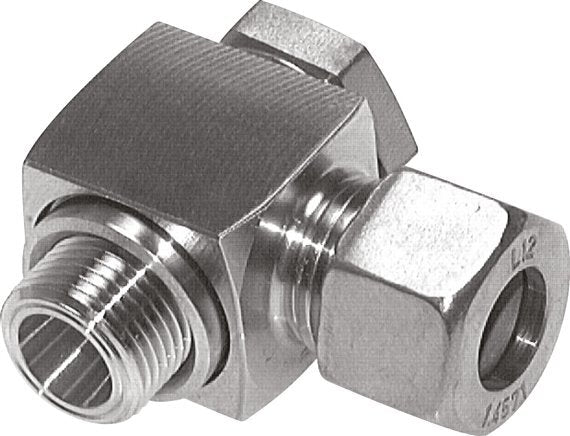

This stainless steel 1.4571 elbow swivel joint is designed with one male threaded connection and one compression ring connection port. The thread connection is rotatable. Connection 1 is a 14 mm compression ring with a M22x1.5 union nut. Connection 2 has male M 20x1.5 threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Thread connection is rotatable
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
