8L & M12x1.5 Stainless Steel Swivel Joint Cutting Fitting with Male Threads 315 bar Rotatable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2BMM
Brand:
Tameson
This stainless steel 1.4571 elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connecti
- Regular price
- $166.20 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days
Description
Specifications
Related products
Description

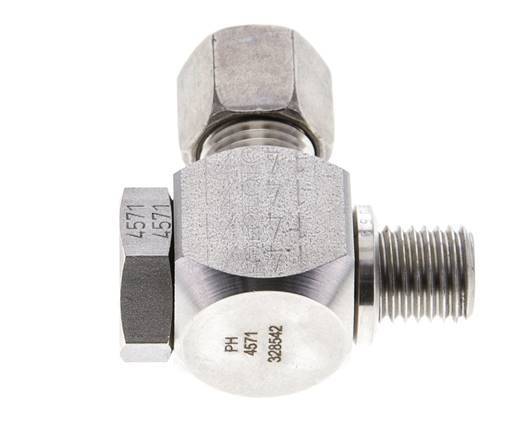

This stainless steel 1.4571 elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 8 mm cutting ring with a M14x1.5 union nut. Connection 2 has male M 12x1.5 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Thread connection is rotatable
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
