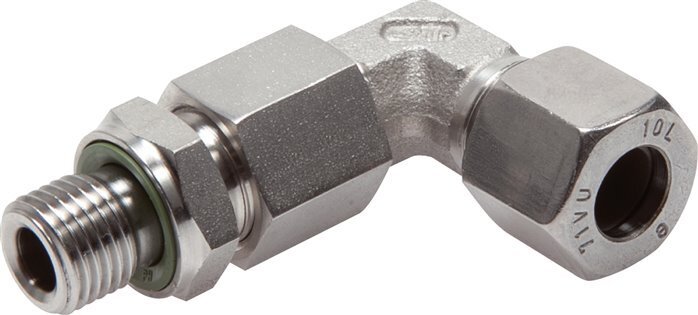

30S & G1-1/4'' Stainless Steel Elbow Cutting Fitting with Male Threads 400 bar Adjustable ISO 8434-1
This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. It has an adjustable connection. Connection 1 is a 30 mm cutting ring with a M42x2 union nut. Connection 2 has male G 1-1/4 inch threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $450.94
Description
This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. It has an adjustable connection. Connection 1 is a 30 mm cutting ring with a M42x2 union nut. Connection 2 has male G 1-1/4 inch threads. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
