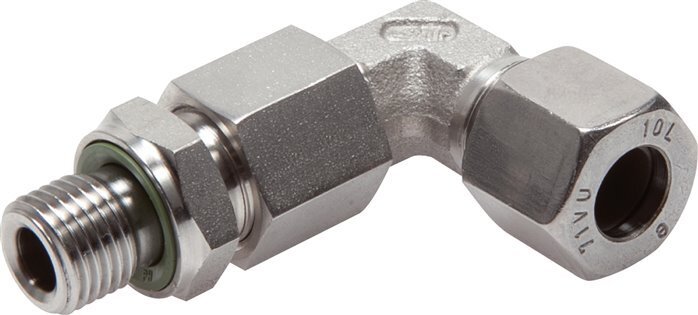

25S & M33x2 Stainless Steel Elbow Compression Fitting with Male Threads 250 bar Adjustable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2BGX
Brand:
Tameson
This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one compression ring connection port. It has a
- Regular price
- $338.20 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 4 - 6 business days
We sell only to registered businesses
Description
Specifications
Related products
Description
This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one compression ring connection port. It has an adjustable connection. Connection 1 is a 25 mm compression ring with a M36x2 union nut. Connection 2 has male M 33x2 threads. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
