6L & M10x1 Stainless Steel Elbow Cutting Fitting with Male Threads 315 bar Adjustable ISO 8434-1

6L & M10x1 Stainless Steel Elbow Cutting Fitting with Male Threads 315 bar Adjustable ISO 8434-1
6L & M10x1 Stainless Steel Elbow Cutting Fitting with Male Threads 315 bar Adjustable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2BFU
Brand: Tameson
This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. It has an ad
View all
$72.10 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 44 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 4 - 6 business days

We sell only to registered businesses
Description
Specifications

Description

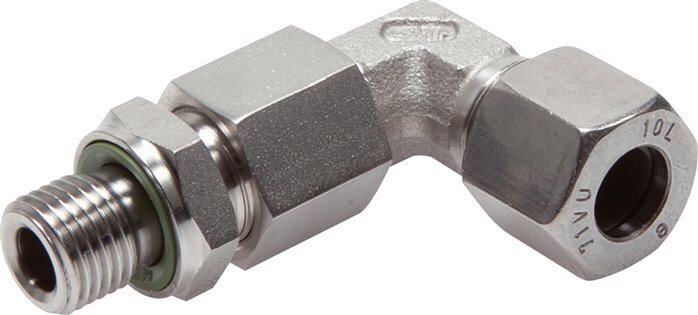

This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. It has an adjustable connection. Connection 1 is a 6 mm cutting ring with a M12x1.5 union nut. Connection 2 has male M 10x1 threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • It has adjustable connection
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications
