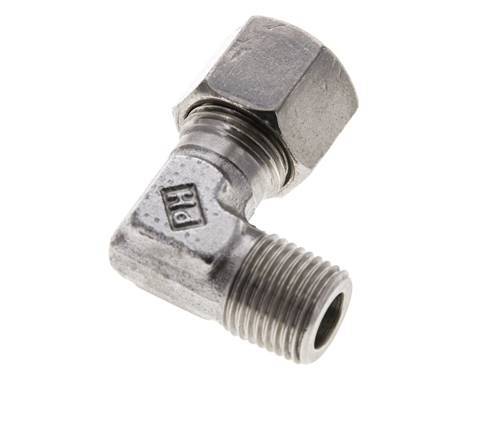

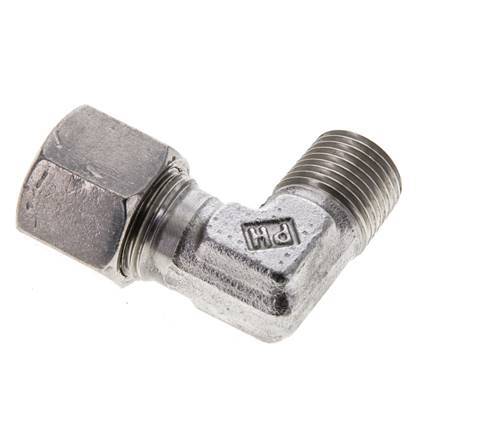

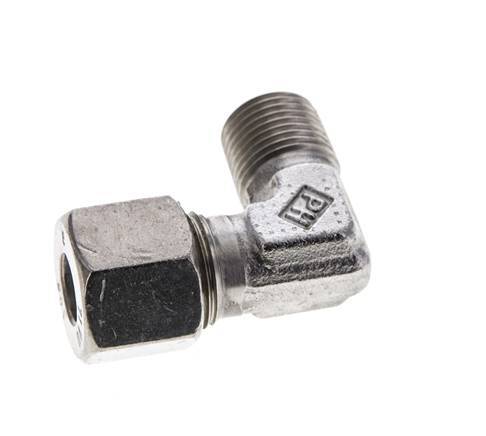

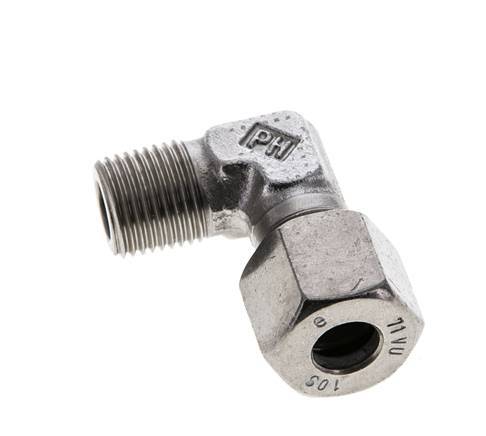

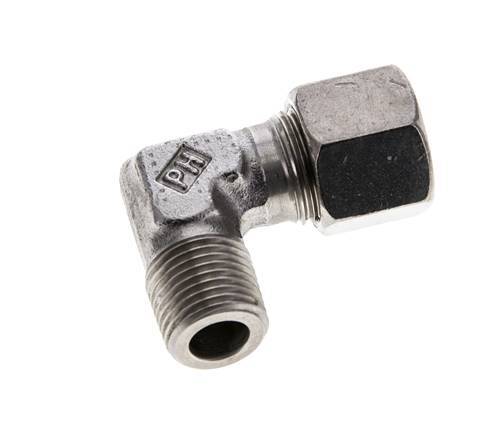

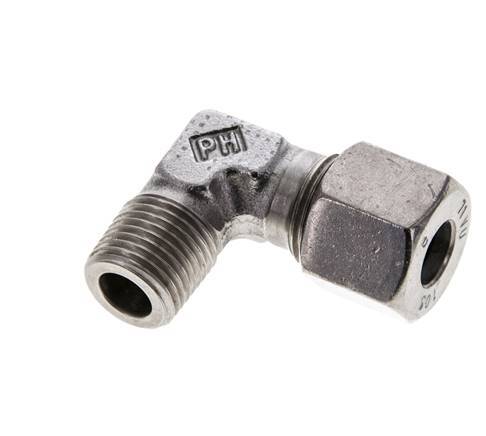

10S & M16x1.5 (con) Stainless Steel Elbow Cutting Fitting with Male Threads 630 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2BEP
Brand:
Tameson
This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1
- Regular price
- €57,12
incl VAT
A VAT (value-added tax) is a goods and service tax that pertains to the European Union (EU). We, Tameson, are required by law to collect VAT for orders within the EU for customers that do not supply us with their VAT number.
- Regular price
- €46,44
excl VAT
Description
Specifications
Description
This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 10 mm cutting ring with a M18x1.5 union nut. Connection 2 has male M 16x1.5 (conical) threads. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
