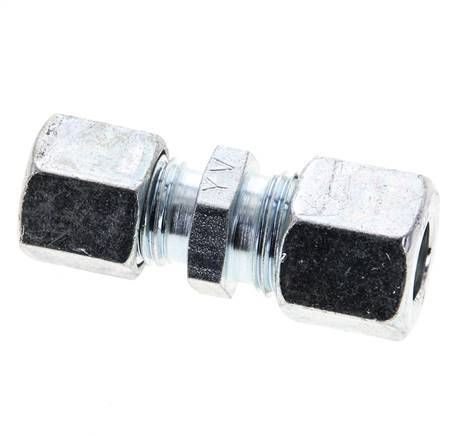

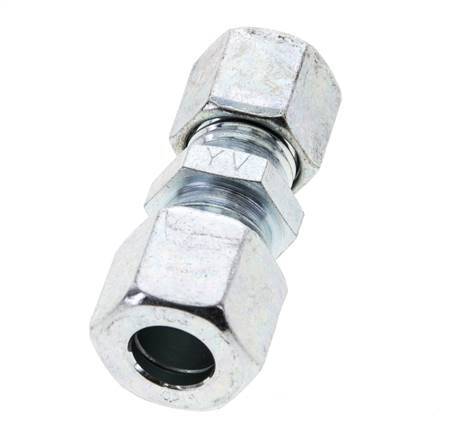

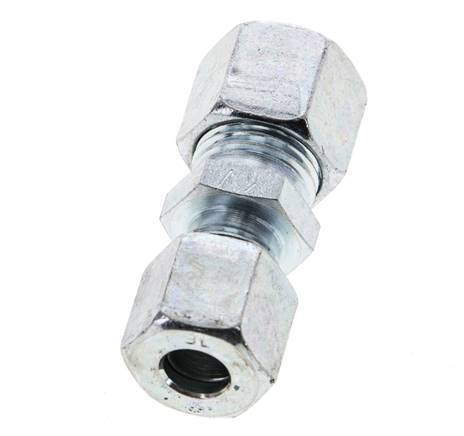

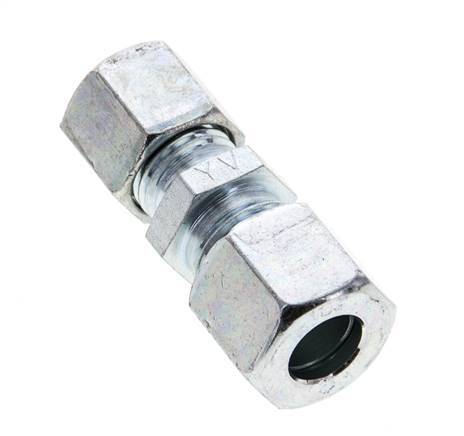

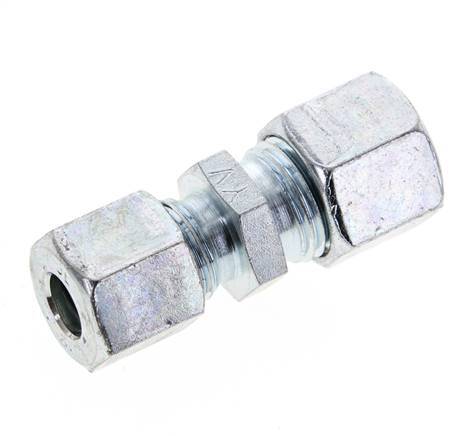

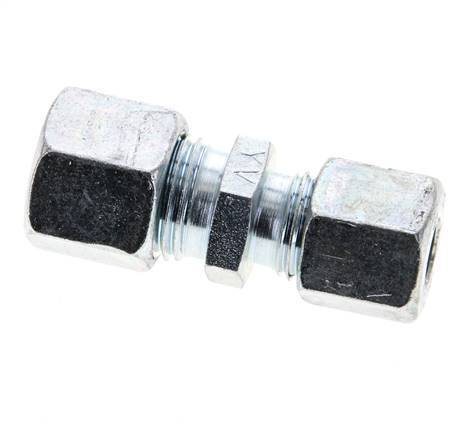

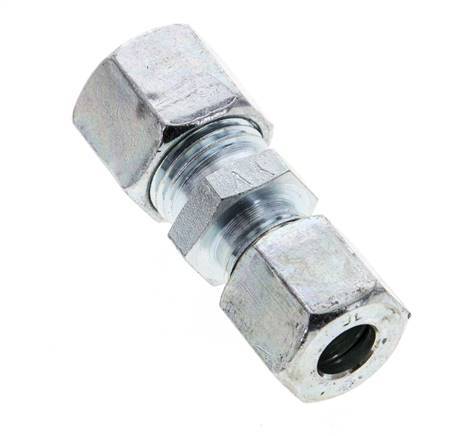

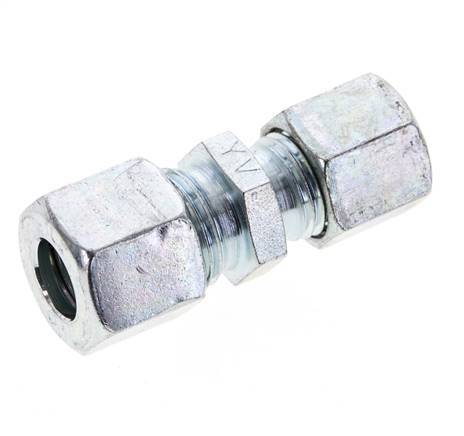

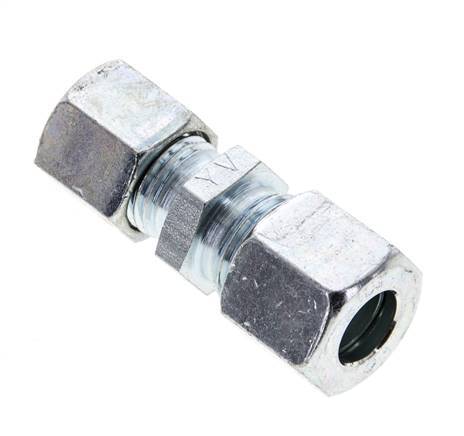

8L & 10L Zink plated Steel Straight Cutting Fitting 315 bar ISO 8434-1

8L & 10L Zink plated Steel Straight Cutting Fitting 315 bar ISO 8434-1
8L & 10L Zink plated Steel Straight Cutting Fitting 315 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2B9V
Brand: Tameson

This zink plated steel straight screw connection is designed with two cutting ring connection points. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 8 mm cutting ring with a M14x1.5 union nut. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
$7.66
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 145 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

501 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This zink plated steel straight screw connection is designed with two cutting ring connection points. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 8 mm cutting ring with a M14x1.5 union nut. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for hydraulic applications

Downloads

Specifications

Union nut thread
Thread size of the union nut
M14 x 1.5, M16 x 1.5
Load class (DIN 2353)
L (light)
Cutting ring connection (mm)
Size of the cutting ring connection
10
Cutting ring connection smaller (mm)
8
Connection type
Cutting ring
Material
Housing material.
Steel
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
315
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-40
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
120
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Material connection 1
Steel
Surface protection connection 1
Galvanic zink plated
Material connection 2
Steel
Shape
Straight
With drain
No
