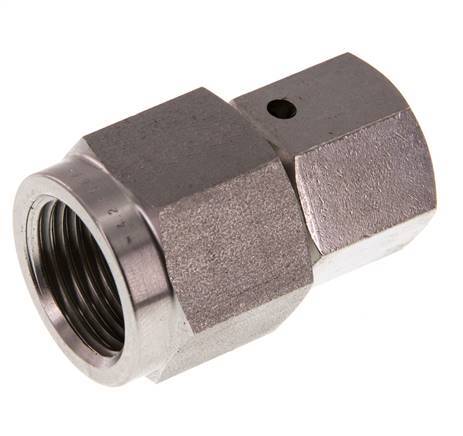

10S & G1/2'' Stainless Steel Straight Swivel with Female Threads for Pressure Gauges 630 bar FKM Sealing Cone ISO 8434-1
This stainless steel 1.4571 straight screwed-on screw connection is designed with This fittings is designed to use with pressure gauge. Connection 1 has a 10 mm swivel tube connection. Connection 2 has female G 1/2 inch threads. It has a sealing cone for sealing. The seal material is FKM. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $61.40
Description
This stainless steel 1.4571 straight screwed-on screw connection is designed with This fittings is designed to use with pressure gauge. Connection 1 has a 10 mm swivel tube connection. Connection 2 has female G 1/2 inch threads. It has a sealing cone for sealing. The seal material is FKM. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- With sealing cone for sealing
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
