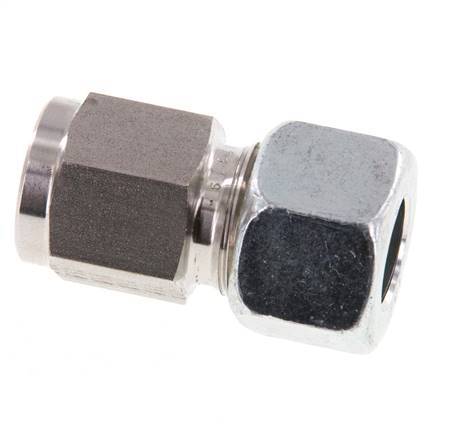

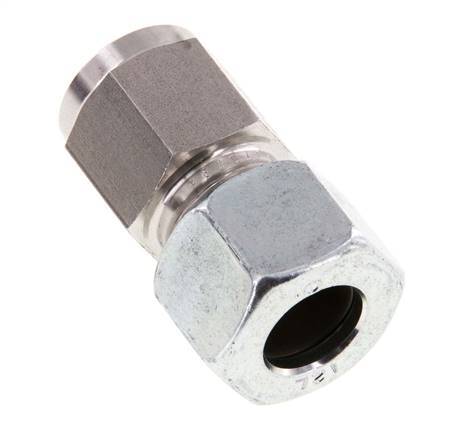

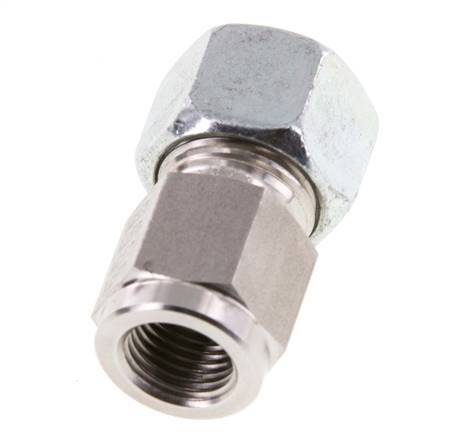

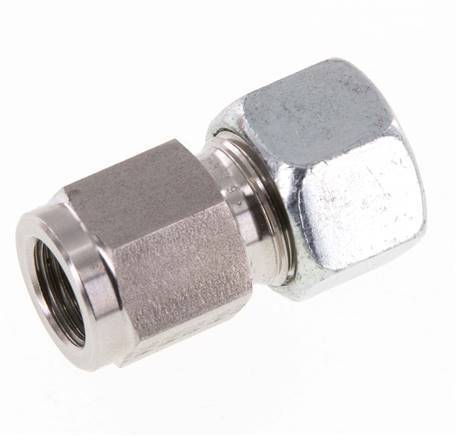

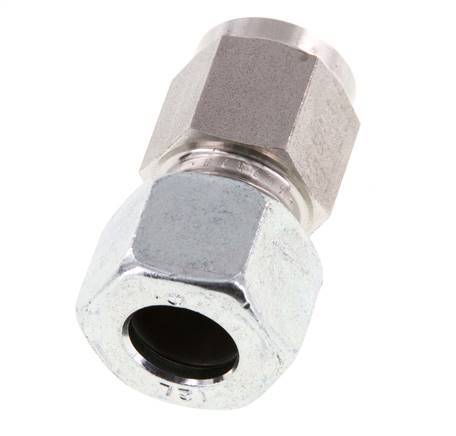

12L & G1/4'' Stainless Steel Straight Cutting Fitting with Female Threads for Pressure Gauges 315 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2B6G
Brand:
Tameson
This stainless steel 1.4571 straight screwed-on screw connection is designed with This fittings is designed to use with pressure gauge. Connection 1 i
- Regular price
- €39,22
incl VAT
A VAT (value-added tax) is a goods and service tax that pertains to the European Union (EU). We, Tameson, are required by law to collect VAT for orders within the EU for customers that do not supply us with their VAT number.
- Regular price
- €31,89
excl VAT
Description
Specifications
Description
This stainless steel 1.4571 straight screwed-on screw connection is designed with This fittings is designed to use with pressure gauge. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 has female G 1/4 inch threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
