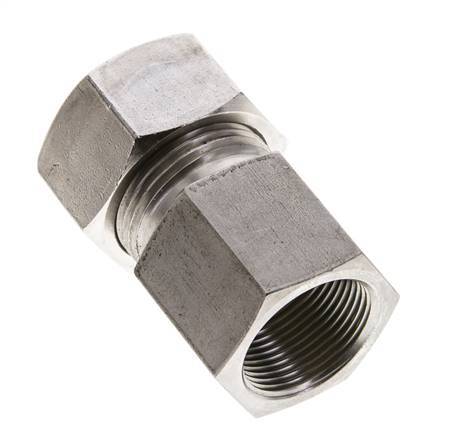

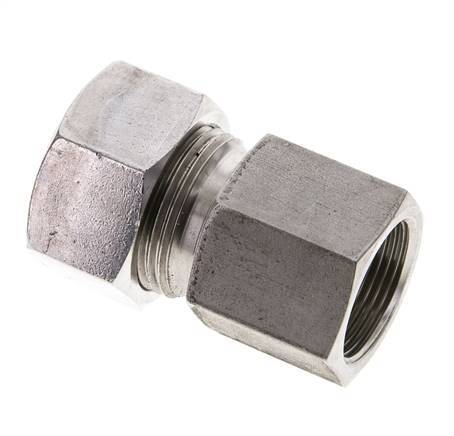

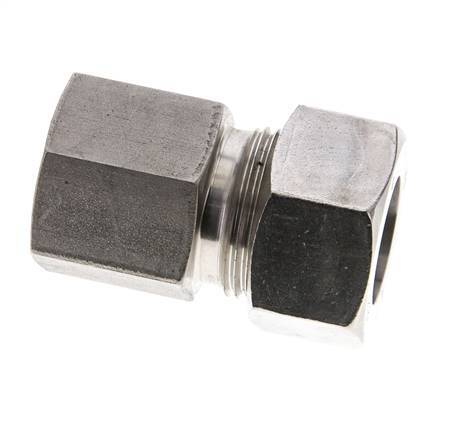

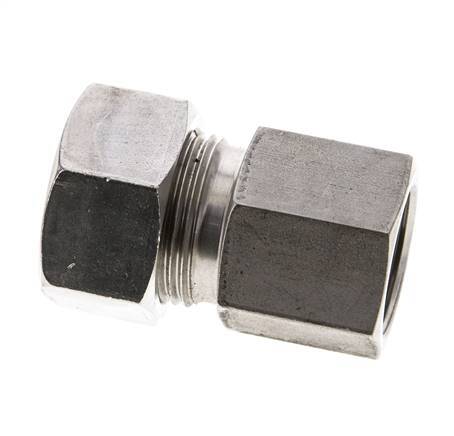

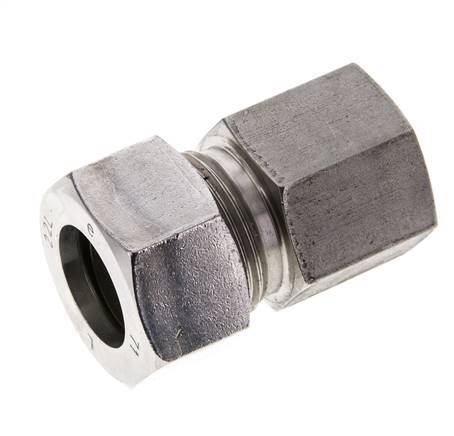

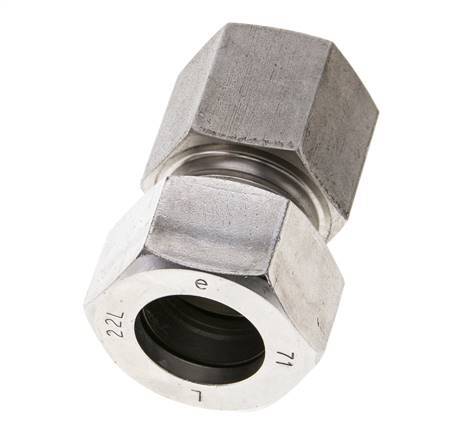

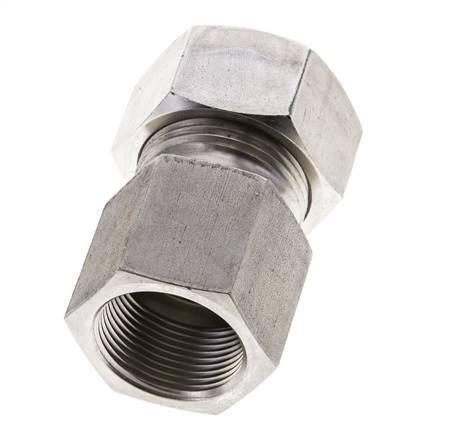

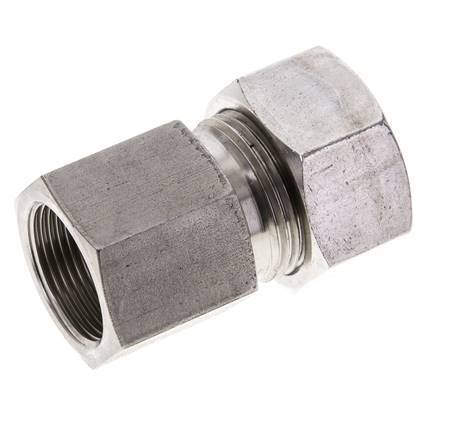

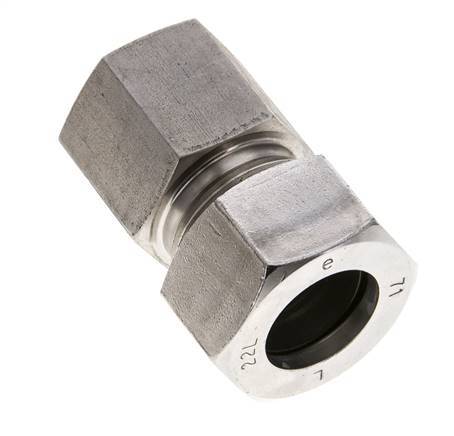

22L & M26x1.5 Stainless Steel Straight Cutting Fitting with Female Threads 160 bar ISO 8434-1

22L & M26x1.5 Stainless Steel Straight Cutting Fitting with Female Threads 160 bar ISO 8434-1
22L & M26x1.5 Stainless Steel Straight Cutting Fitting with Female Threads 160 bar ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2B53
Brand: Tameson

This stainless steel 1.4571 straight screwed-on screw connection is designed with one female threaded connection and one cutting ring connection port. Connection 1 is a 22 mm cutting ring with a M30x2 union nut. Connection 2 has female M 26x1.5 threads. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
$87.13
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

501 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This stainless steel 1.4571 straight screwed-on screw connection is designed with one female threaded connection and one cutting ring connection port. Connection 1 is a 22 mm cutting ring with a M30x2 union nut. Connection 2 has female M 26x1.5 threads. The maximum pressure is 160 bar (2320 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Downloads

Specifications

Thread
M26 x 1.5
Union nut thread
Thread size of the union nut
M30 x 2
Load class (DIN 2353)
L (light)
Cutting ring connection (mm)
Size of the cutting ring connection
22
Connection type
Cutting ring, Inner thread metric
Material
Housing material.
Stainless steel
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
160
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-60
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
400
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Quality of material
Stainless steel (1.4571)
Material connection 1
Stainless steel
Material quality connection 1
Stainless steel (1.4571)
Material connection 2
Stainless steel
Shape
Straight
With drain
No
