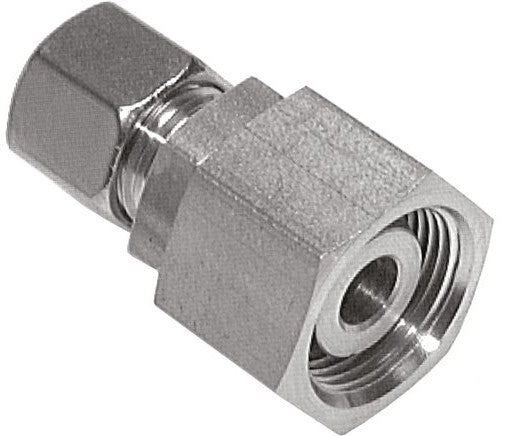

8S & 14S Stainless Steel Straight Compression Fitting with Swivel 400 bar FKM O-ring Sealing Cone ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2AYU
Brand:
Tameson
This stainless steel 1.4571 straight screw in connection is designed with compression ring and swivel tube connection ports. Connection 1 is a 8 mm co
- Regular price
- $65.42 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 2 - 4 business days
We sell only to registered businesses
Description
Specifications
Related products
Description
This stainless steel 1.4571 straight screw in connection is designed with compression ring and swivel tube connection ports. Connection 1 is a 8 mm compression ring with a M16x1.5 union nut. Connection 2 has a 14 mm swivel tube connection. It has an o-ring and sealing cone for sealing. The seal material is FKM. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- With O-ring and sealing cone
- Compatible with all cutting ring fittings according to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for use in gas and water area
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- Since it has a compression ring connection, it can only be used once
