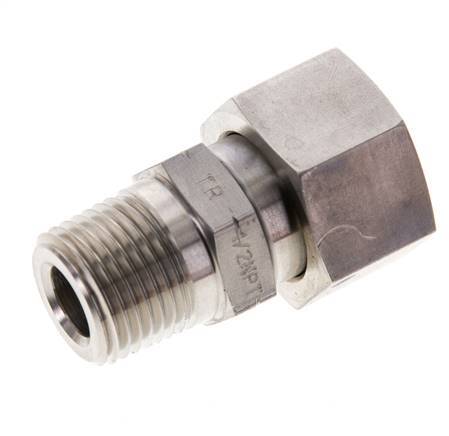

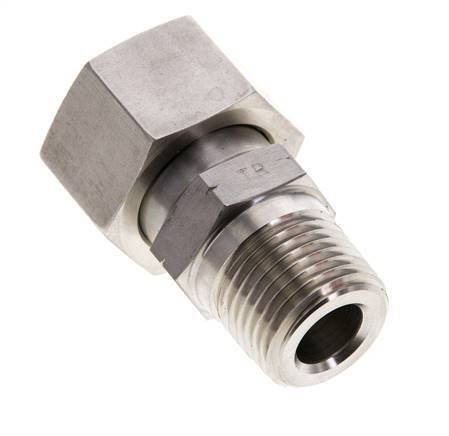

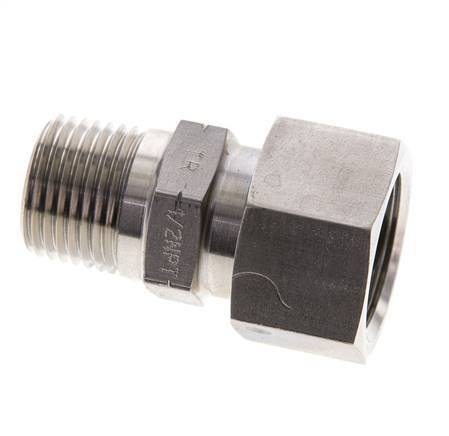

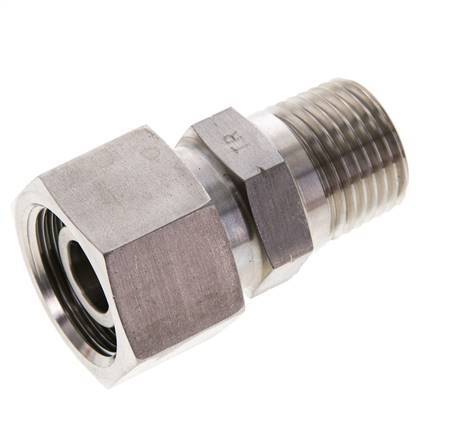

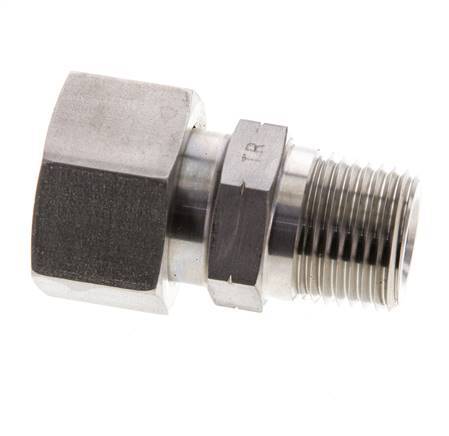

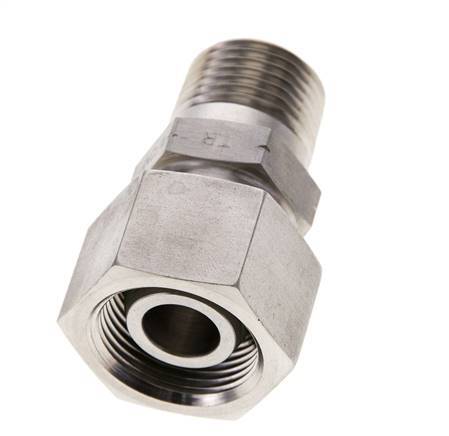

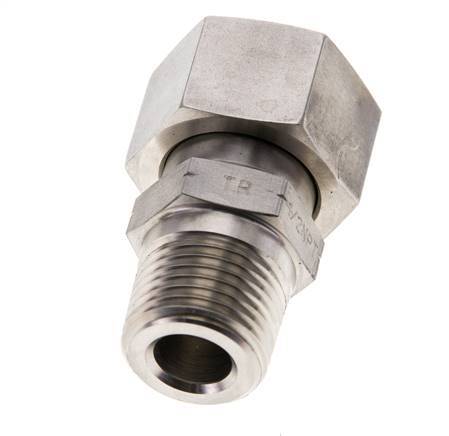

16S & 1/2'' NPT Stainless Steel Straight Swivel with Male Threads 400 bar FKM O-ring Sealing Cone Adjustable ISO 8434-1
This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 16 mm swivel tube connection. Connection 2 has male 1/2 inch NPT threads. It has an o-ring and sealing cone for sealing. The seal material is FKM. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $100.52
Description
This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 16 mm swivel tube connection. Connection 2 has male 1/2 inch NPT threads. It has an o-ring and sealing cone for sealing. The seal material is FKM. The maximum pressure is 400 bar (5800 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- With O-ring and sealing cone
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
