Image may vary slightly
See specifications for accurate information.
Reference: F2AKA
Brand: Tameson
This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable
View all
$26.63 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Related products

Description

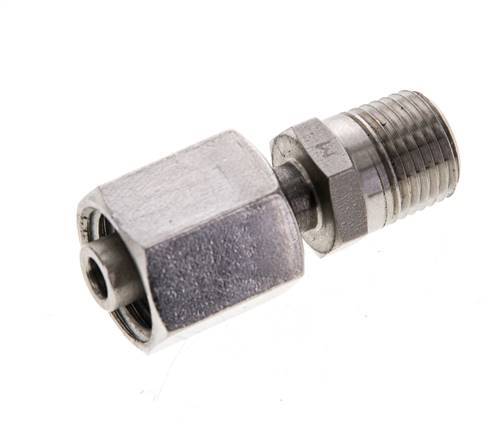

This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 6 mm swivel tube connection. Connection 2 has male 1/8 inch NPT threads. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -60 to 400 °C (-76 to 752 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • It has adjustable connection
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Specifications

Thread
1/8 inch
Load class (DIN 2353)
L (light)
Swivel tube connection
6 L
Connection type
Outer thread conical (NPT), Swivel tube connection
Materiali
Stainless steel
Max pressure at 20 °Ci
315 bar
Min temperaturei
-60 °C
Max temperaturei
400 °C
Standardi
DIN EN ISO 8434-1 (DIN 2353)
Fitting features
Adjustable
Quality of material
Stainless steel (1.4571)
Material connection 1
Stainless steel
Material quality connection 1
Stainless steel (1.4571)
Material connection 2
Stainless steel
Shape
Straight
With drain
No
