Image may vary slightly
See specifications for accurate information.
Reference: F2AJZ
Brand: Tameson
This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable conne
View all
$23.37 USD
excl VAT
In stock Ships in 3d Not available Not available
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 527 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 5 - 7 business days

We sell only to registered businesses

Customers rate us: 4.89 / 5

666 reviews at TrustedShops

Description
Specifications

Description

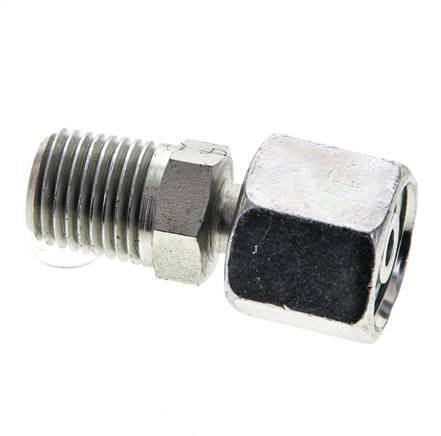

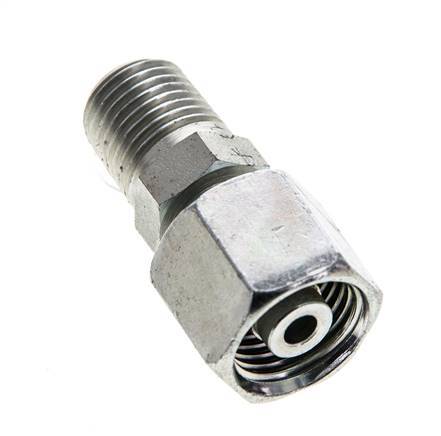

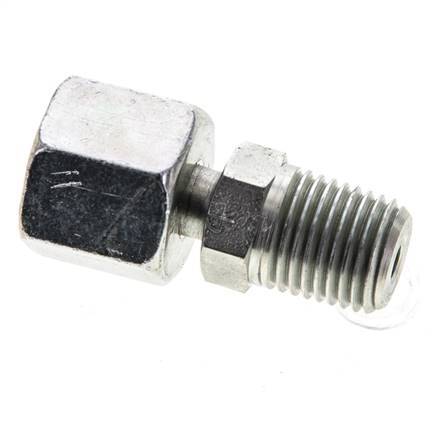

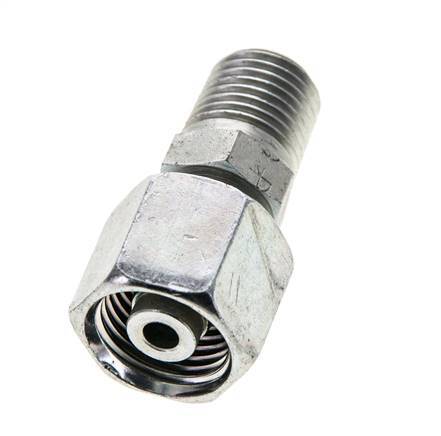

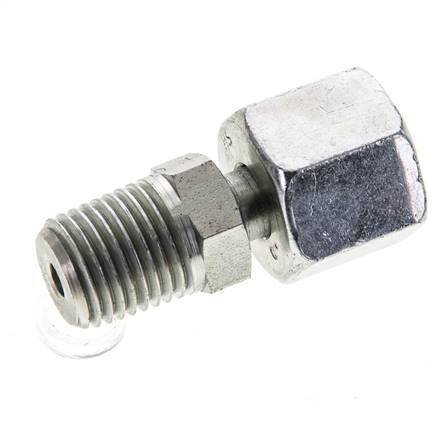

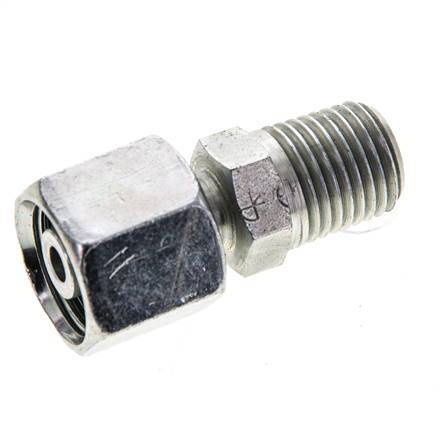

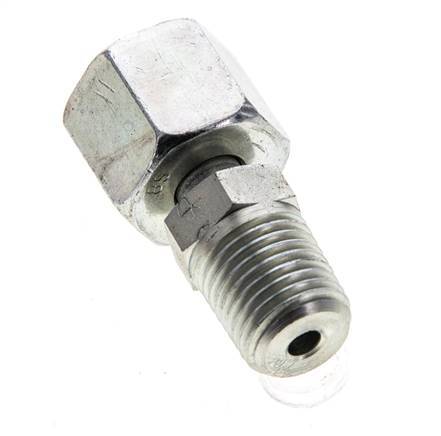

This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 8 mm swivel tube connection. Connection 2 has male 1/4 inch NPT threads. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • It has adjustable connection
  • Suitable for hydraulic applications

Specifications
