15L & G3/4'' Zink plated Steel Straight Swivel with Male Threads 315 bar NBR O-ring Sealing Cone Adjustable ISO 8434-1

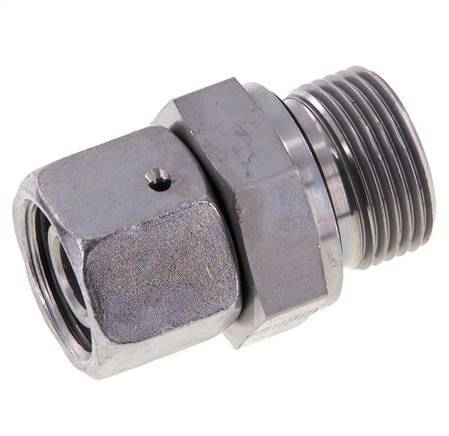

This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 15 mm swivel tube connection. Connection 2 has male G 3/4 inch threads. It has an o-ring and sealing cone for sealing. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $20.11
Description
This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 15 mm swivel tube connection. Connection 2 has male G 3/4 inch threads. It has an o-ring and sealing cone for sealing. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- With O-ring and sealing cone
- Suitable for hydraulic applications
