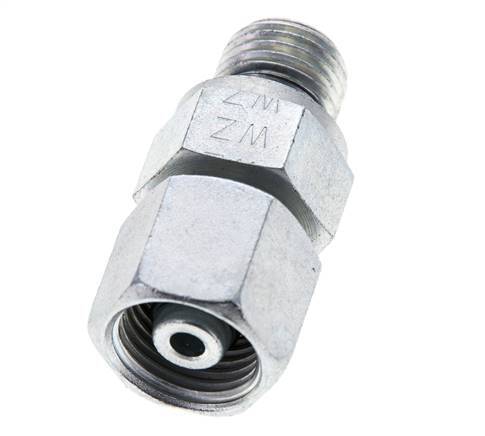

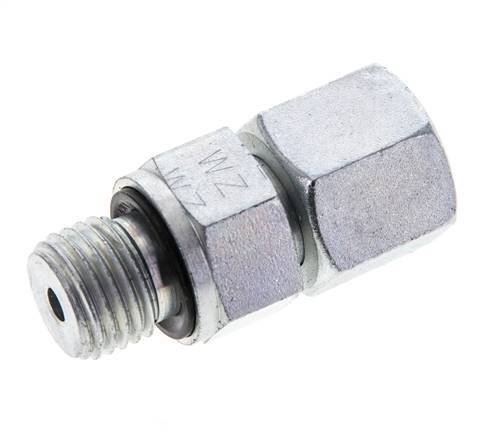

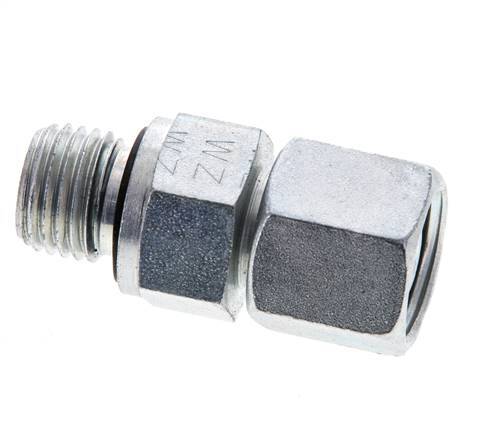

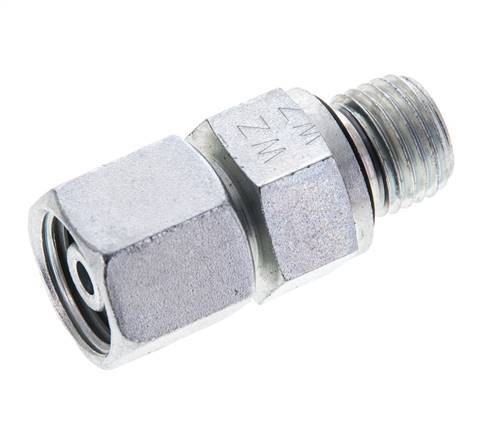

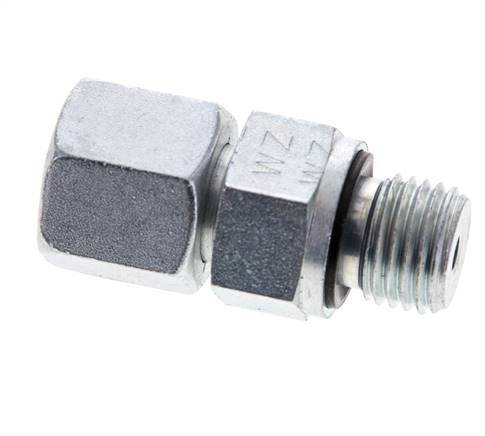

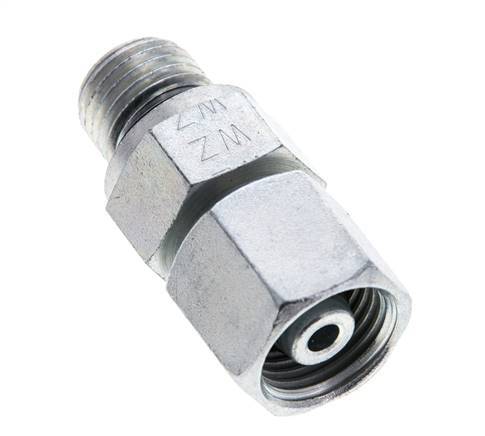

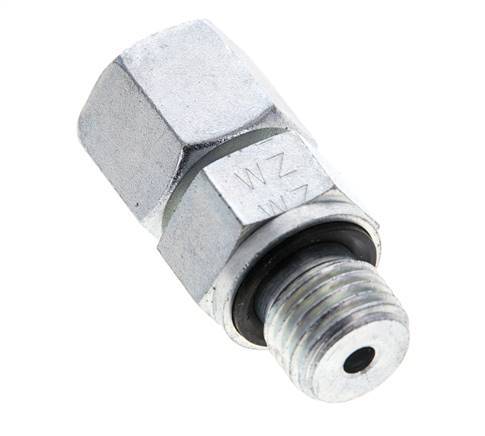

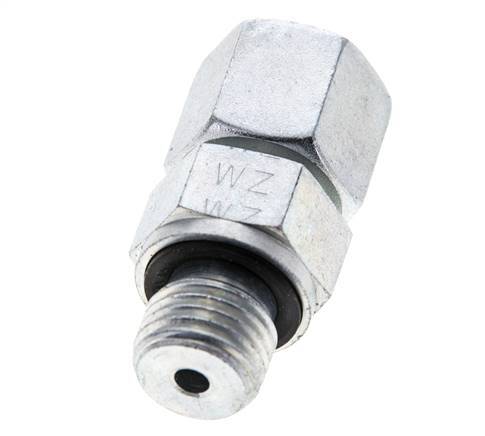

8S & M14x1.5 Zink plated Steel Straight Swivel with Male Threads 630 bar NBR O-ring Sealing Cone Adjustable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2AE9
Brand:
Tameson
This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable conne
- Regular price
- $9.14 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days
We sell only to registered businesses
Description
Specifications
Description
This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 8 mm swivel tube connection. Connection 2 has male M 14x1.5 threads. It has an o-ring and sealing cone for sealing. The seal material is NBR. The maximum pressure is 630 bar (9135 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- With O-ring and sealing cone
- Suitable for hydraulic applications
