38S & M48x2 Stainless Steel Straight Swivel with Male Threads 315 bar FKM Adjustable ISO 8434-1
Notice: This product is discontinued

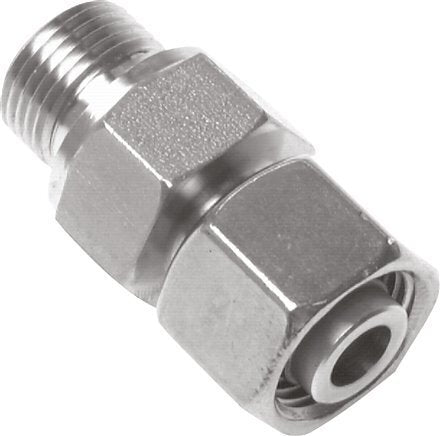

This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 38 mm swivel tube connection. Connection 2 has male M 48x2 threads. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Notice: This product is discontinued
Description
This stainless steel 1.4571 straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 38 mm swivel tube connection. Connection 2 has male M 48x2 threads. The seal material is FKM. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
