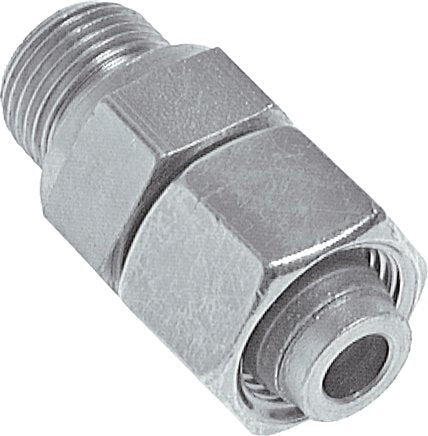

15L & M18x1.5 Zink plated Steel Straight Swivel with Male Threads 315 bar NBR Adjustable ISO 8434-1

15L & M18x1.5 Zink plated Steel Straight Swivel with Male Threads 315 bar NBR Adjustable ISO 8434-1
15L & M18x1.5 Zink plated Steel Straight Swivel with Male Threads 315 bar NBR Adjustable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference: F2ACR
Brand: Tameson
This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable conne
View all
$9.16 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 14 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

This zink plated steel straight screw in connection is designed with swivel tube connection port and a threaded connection. It has an adjustable connection. Connection 1 has a 15 mm swivel tube connection. Connection 2 has male M 18x1.5 threads. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • It has adjustable connection
  • Suitable for hydraulic applications

Specifications

Thread
M18 x 1.5
Load class (DIN 2353)
L (light)
Swivel tube connection
15 L
Connection type
Outer thread metric,Swivel tube connection
Materiali
Steel
Seal materiali
NBR (nitrile rubber)
Max pressure at 20 °C (bar)i
315
Min temperature (°C)i
-35
Max temperature (°C)i
100
Standardi
DIN EN ISO 8434-1 (DIN 2353)
Fitting features
Adjustable
Material connection 1
Steel
Surface protection connection 1
Galvanic zink plated
Material connection 2
Steel
Shape
Straight
With drain
No
