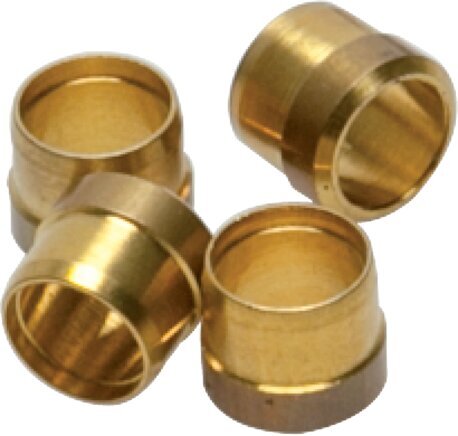

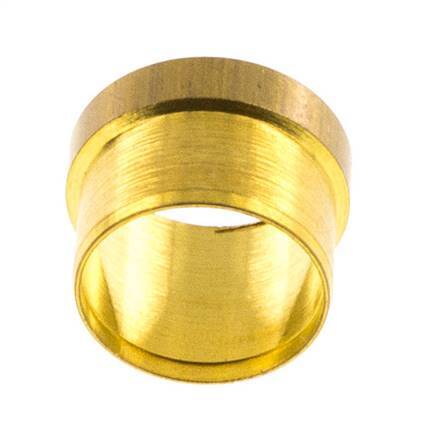

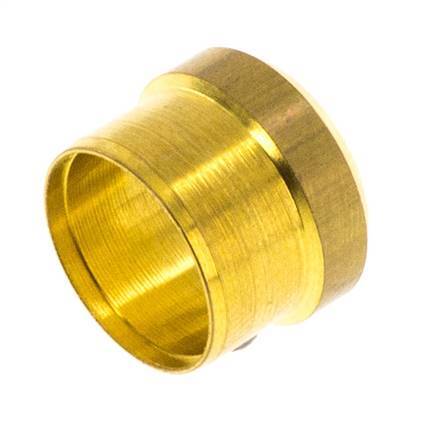

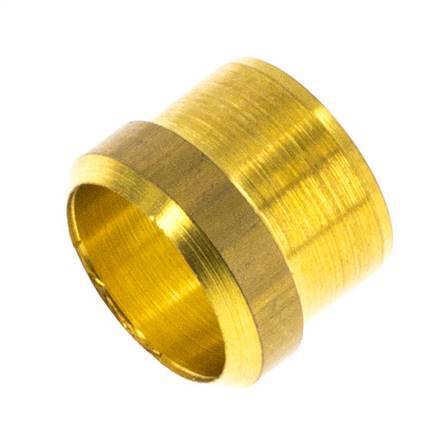

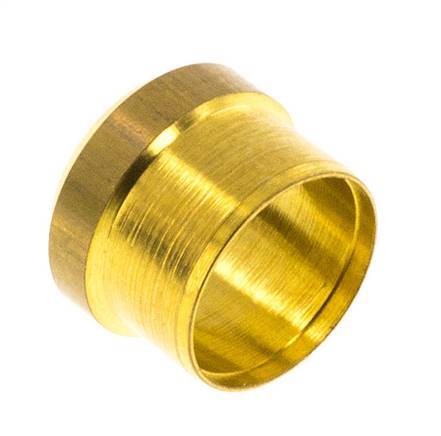

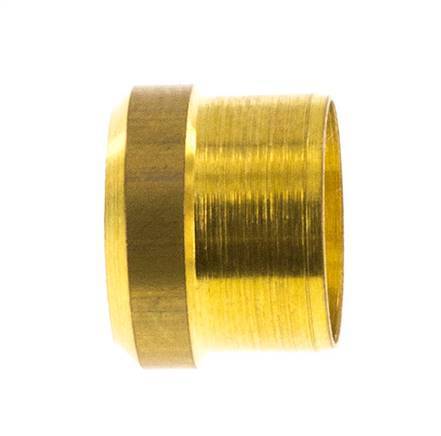

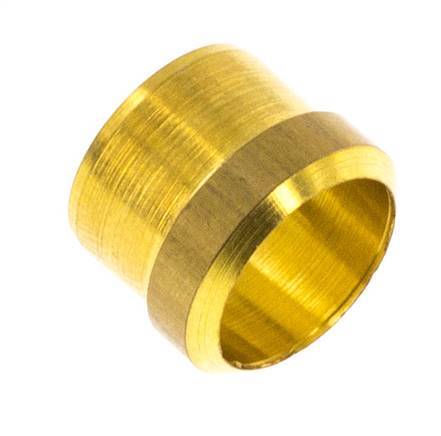

8LL (M12x1) Brass Cutting ring [20 Pieces]

8LL (M12x1) Brass Cutting ring [20 Pieces]
8LL (M12x1) Brass Cutting ring [20 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: F2A68-X20
Brand: Tameson

This brass cutting ring is the component that needs to be replaced after use in a cutting ring fitting. It is designed for an outer pipe/hose diameter of 8 mm. Suitable for a M12x1 union nut. It has an LL (very light) load class according to the DIN 2353. The maximum pressure is 100 bar (1450 psi).

Contains 20 pieces

View all
$8.09
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 23 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This brass cutting ring is the component that needs to be replaced after use in a cutting ring fitting. It is designed for an outer pipe/hose diameter of 8 mm. Suitable for a M12x1 union nut. It has an LL (very light) load class according to the DIN 2353. The maximum pressure is 100 bar (1450 psi).

Pros:

  • Suitable for copper tube
  • Suitable for plastic tube

Downloads

Specifications

Outer pipe diameter (mm)
8
Outer diameter (mm)
8
Union nut thread
Thread size of the union nut
M10 x 1
Load class (DIN 2353)
LL (very light)
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Brass
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
100
With sealing
No
With safety collar
No
With knurl
No
Suitable for aluminium tube
No
Suitable for plastic multi-layer pipes
Yes
Suitable for plastic tube
Yes
Suitable for stainless steel tube
No
Suitable for steel tube
No
Suitable for copper tube
Yes
