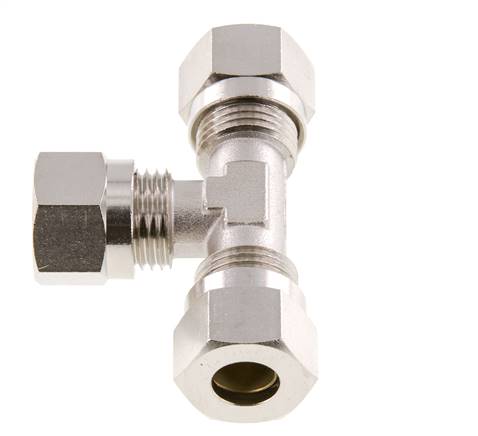

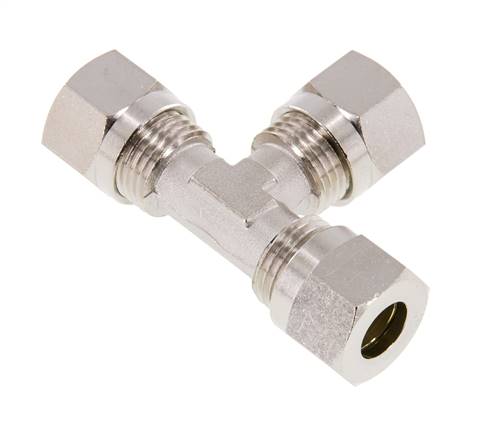

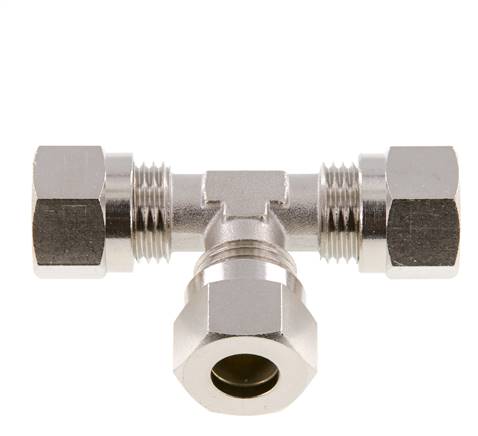

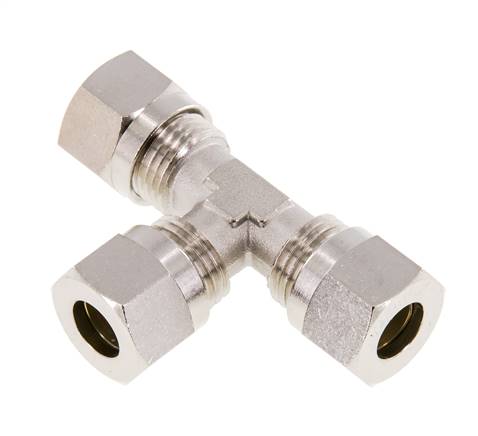

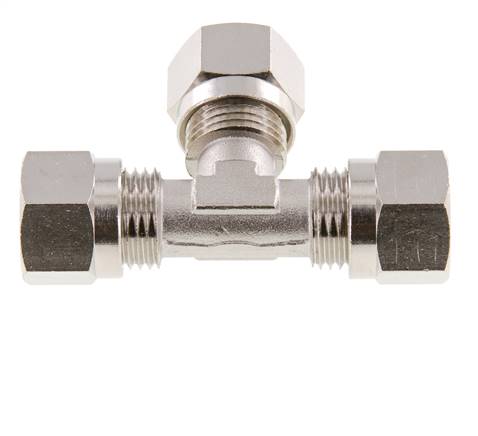

10L Nickel plated Brass T-Shape Tee Cutting Fitting 115 bar ISO 8434-1
This nickel plated brass Tee screw connection is designed with three cutting ring connections in a T-shape. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 10 mm cutting ring with a M16x1.5 union nut.Connection 3 is a 10 mm cutting ring. The maximum pressure is 115 bar (1668 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $12.64 USD
Description
This nickel plated brass Tee screw connection is designed with three cutting ring connections in a T-shape. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 is a 10 mm cutting ring with a M16x1.5 union nut.Connection 3 is a 10 mm cutting ring. The maximum pressure is 115 bar (1668 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for neutral and non-corrosive media
