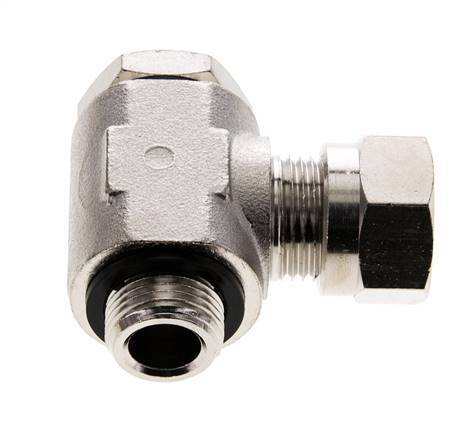

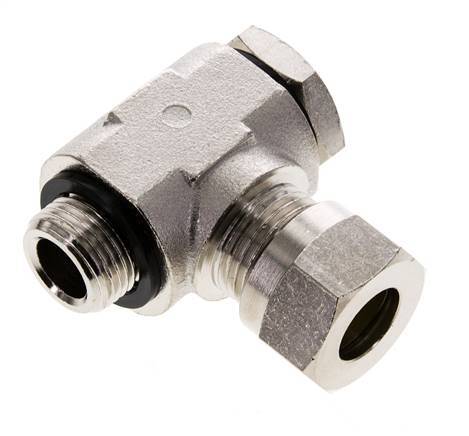

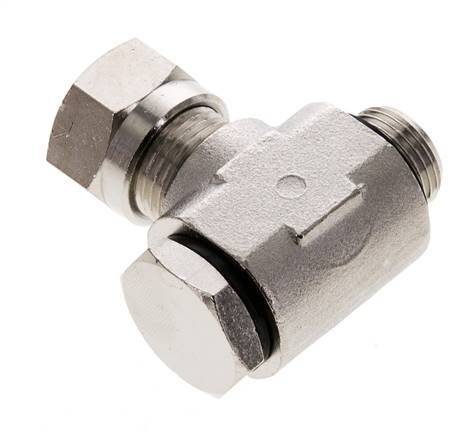

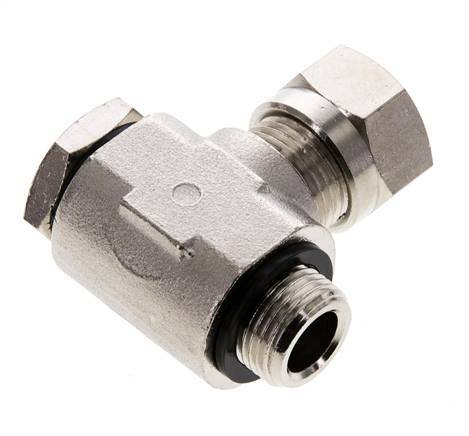

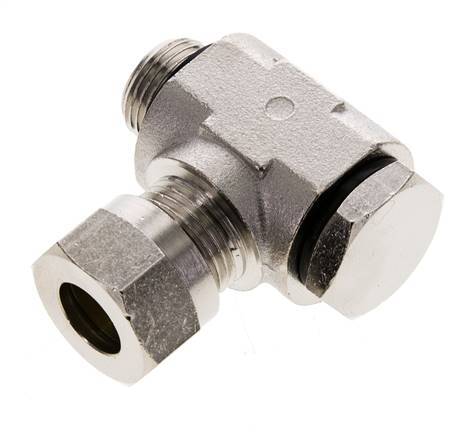

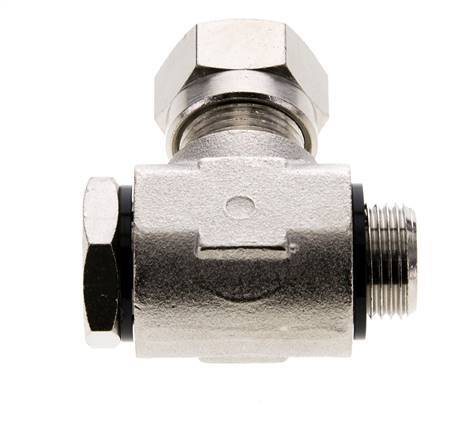

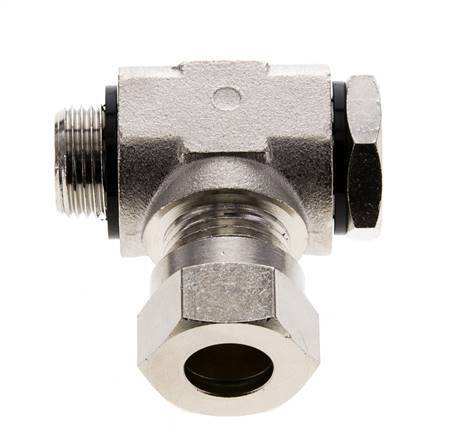

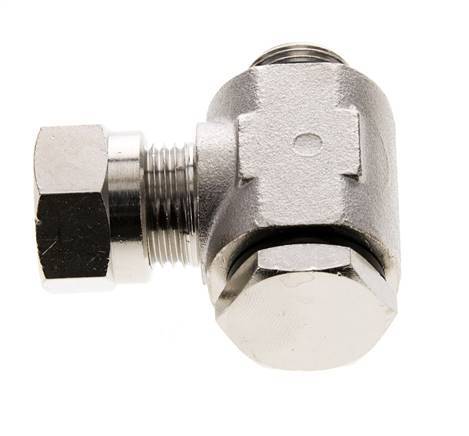

12L & G3/8'' Nickel plated Brass Swivel Joint Cutting Fitting with Male Threads 75 bar Rotatable ISO 8434-1
This nickel plated brass elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 has male G 3/8 inch threads. The maximum pressure is 75 bar (1088 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $12.98
Description
This nickel plated brass elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 has male G 3/8 inch threads. The maximum pressure is 75 bar (1088 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Thread connection is rotatable
- Suitable for neutral and non-corrosive media
