Image may vary slightly
See specifications for accurate information.
Reference: F2A57
Brand: Tameson
This nickel plated brass elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection
View all
$6.00 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 80 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

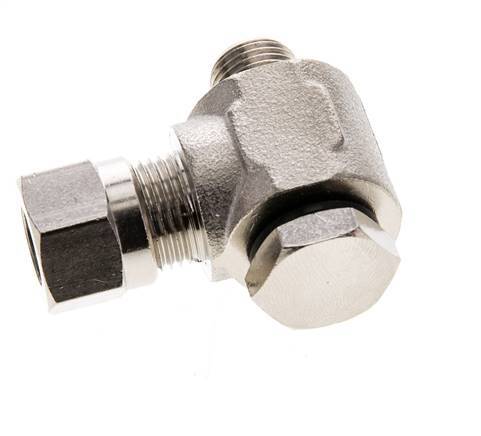

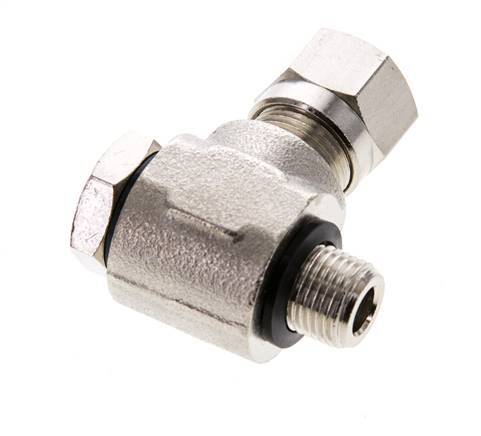

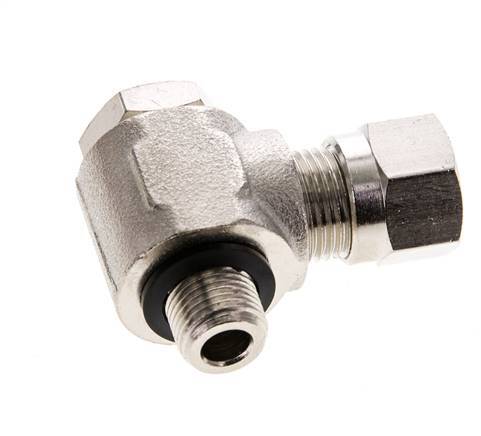

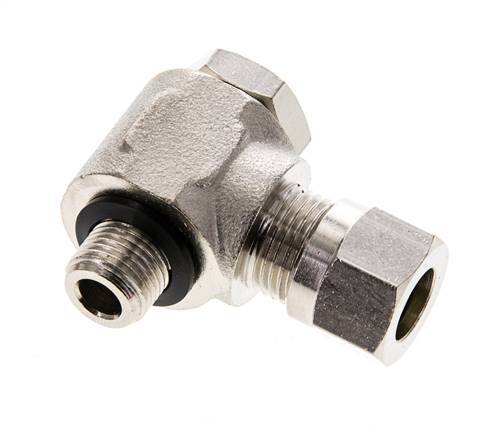

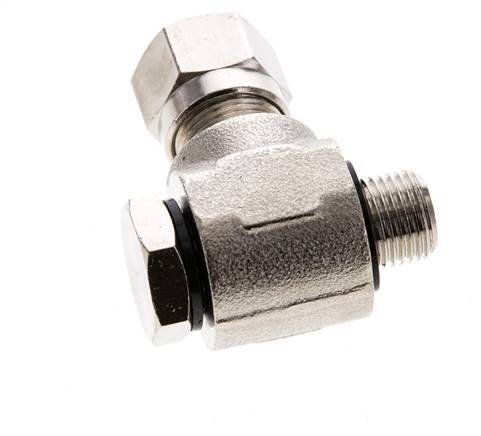

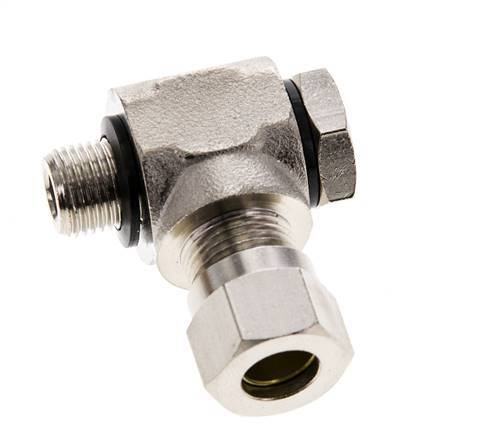

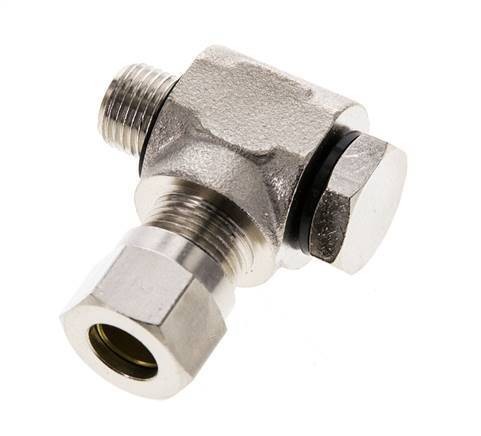

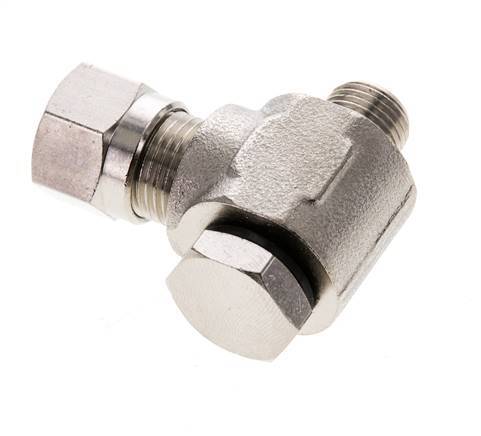

This nickel plated brass elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 8 mm cutting ring with a M12x1 union nut. Connection 2 has male G 1/8 inch threads. The maximum pressure is 100 bar (1450 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Thread connection is rotatable
  • Suitable for neutral and non-corrosive media

Specifications

Thread
1/8 inch
Union nut threadi
M12x1
Load class (DIN 2353)
LL (very light)
Cutting ring connection (mm)i
8
Connection type
Cutting ring,Outer thread cylindrical BSPP-G
Materiali
Brass
Max pressure at 20 °C (bar)i
100
Min temperature (°C)i
-20
Max temperature (°C)i
80
Standardi
DIN EN ISO 8434-1 (DIN 2353)
Material connection 1
Brass
Surface protection connection 1
Nickel-plated
Material connection 2
Brass
Shape
Elbow
Bend angle (°)
90
With drain
No
