Image may vary slightly
See specifications for accurate information.
Reference: F2A54
Brand: Tameson

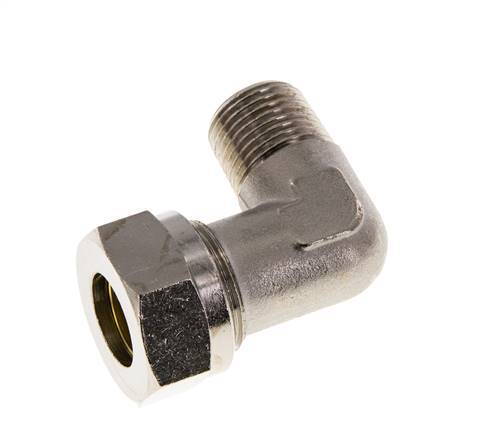

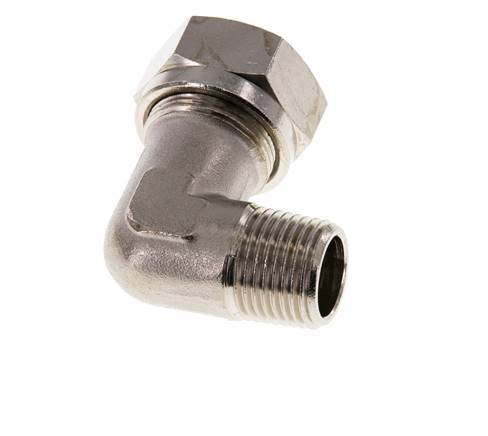

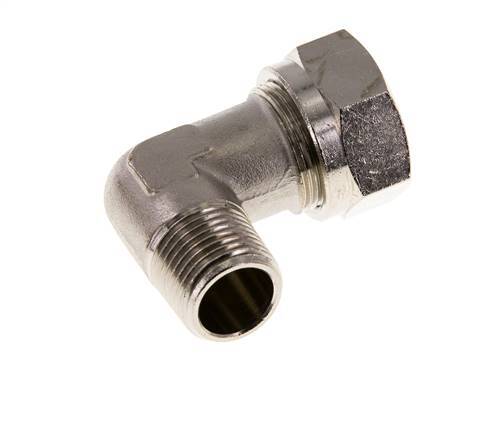

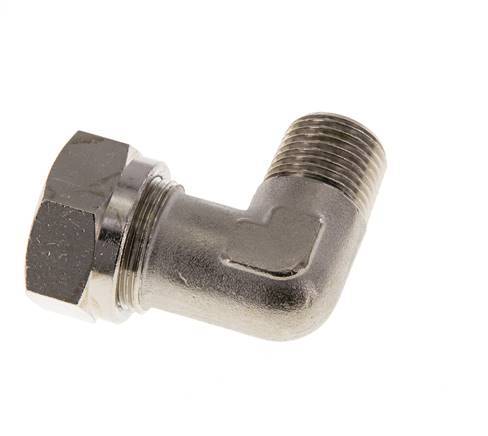

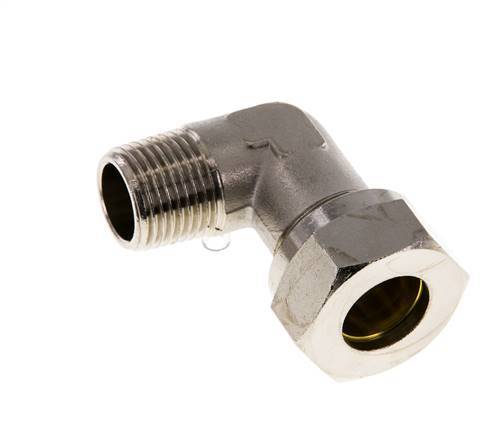

This nickel plated brass elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 18 mm cutting ring with a M26x1.5 union nut. Connection 2 has male R 1/2 inch threads. The maximum pressure is 65 bar (943 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
$19.46
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This nickel plated brass elbow screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 18 mm cutting ring with a M26x1.5 union nut. Connection 2 has male R 1/2 inch threads. The maximum pressure is 65 bar (943 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for neutral and non-corrosive media

Downloads

Specifications

Thread
1/2 inch
Union nut thread
Thread size of the union nut
M26 x 1.5
Load class (DIN 2353)
L (light)
Cutting ring connection (mm)
Size of the cutting ring connection
18
Connection type
Cutting ring, Outer thread conical BSPT-R
Material
Housing material.
Brass
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
65
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-60
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
300
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Material connection 1
Brass
Surface protection connection 1
Nickel-plated
Material connection 2
Brass
Shape
Elbow
Bend angle (°)
90
With drain
No
