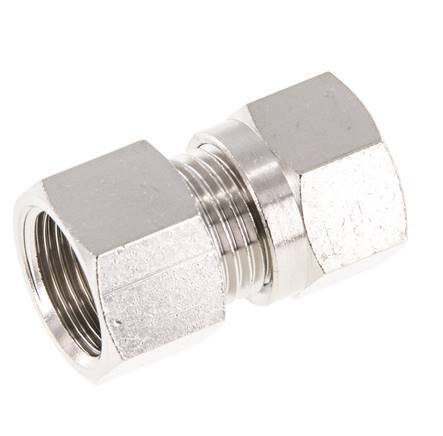

10L & G3/8'' Nickel plated Brass Straight Cutting Fitting with Female Threads 115 bar ISO 8434-1
This nickel plated brass straight screwed-on screw connection is designed with one female threaded connection and one cutting ring connection port. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 has female G 3/8 inch threads. The maximum pressure is 115 bar (1668 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $6.77
Description
This nickel plated brass straight screwed-on screw connection is designed with one female threaded connection and one cutting ring connection port. Connection 1 is a 10 mm cutting ring with a M16x1.5 union nut. Connection 2 has female G 3/8 inch threads. The maximum pressure is 115 bar (1668 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for neutral and non-corrosive media
