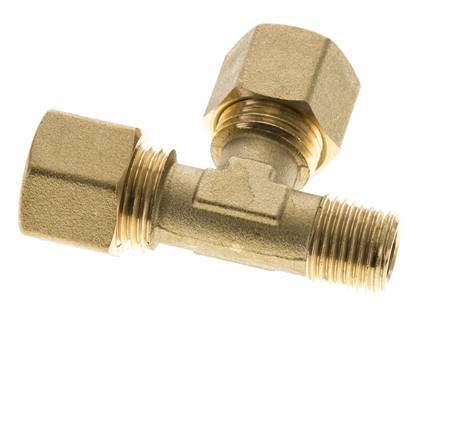

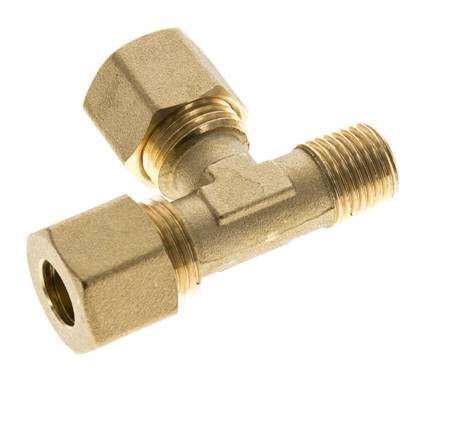

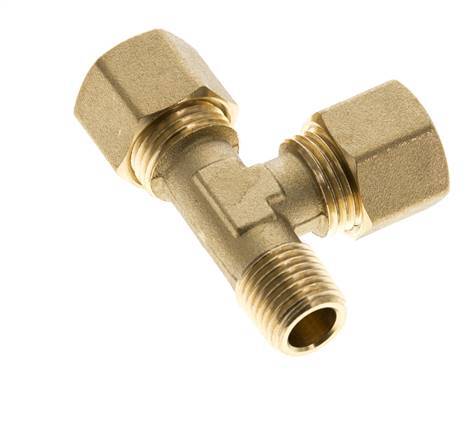

10mm & R1/4'' Brass Right Angle Tee Compression Fitting with Male Threads 95 bar DIN EN 1254-2
This brass Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. Connection 1 is a 10 mm compression ring with a M16x1.5 union nut. Connection 2 is a 10 mm compression ring with a M16x1.5 union nut. Connection 3 has male R 1/4 inch threads. The maximum pressure is 95 bar (1378 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN 1254-2.
- Regular price
- $9.48
Description
This brass Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. Connection 1 is a 10 mm compression ring with a M16x1.5 union nut. Connection 2 is a 10 mm compression ring with a M16x1.5 union nut. Connection 3 has male R 1/4 inch threads. The maximum pressure is 95 bar (1378 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN 1254-2.
Pros:
- Adheres to DIN EN 1254-2
- Suitable for neutral and non-corrosive media
Cons:
- The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)
