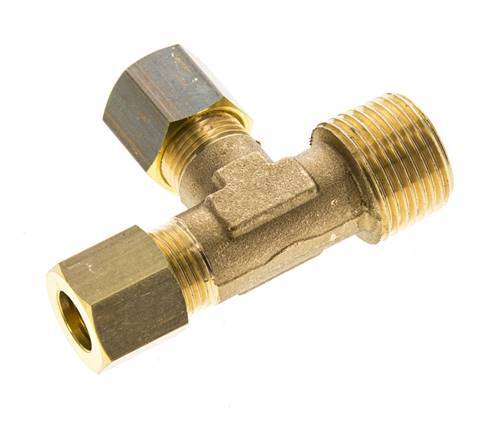

8mm & R3/8'' Brass Right Angle Tee Compression Fitting with Male Threads 135 bar DIN EN 1254-2
Image may vary slightly
See specifications for accurate information.
Reference:
F2A2U
Brand:
Tameson
This brass Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. Connection 1
- Regular price
- $8.36 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 4 - 6 business days
We sell only to registered businesses
Description
Specifications
Related products
Description
This brass Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a L-shape. Connection 1 is a 8 mm compression ring with a M12x1 union nut. Connection 2 is a 8 mm compression ring with a M12x1 union nut. Connection 3 has male R 3/8 inch threads. The maximum pressure is 135 bar (1958 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN 1254-2.
Pros:
- Adheres to DIN EN 1254-2
- Suitable for neutral and non-corrosive media
Cons:
- The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)
