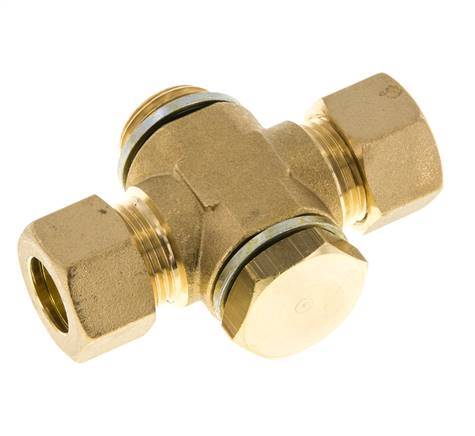

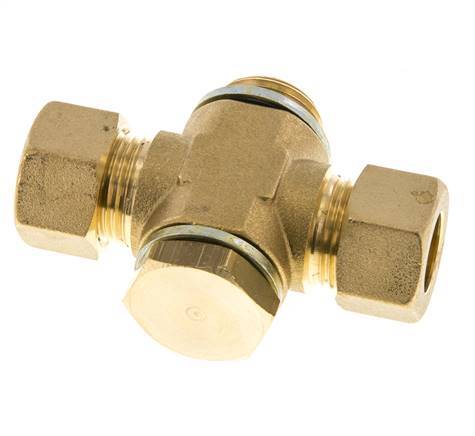

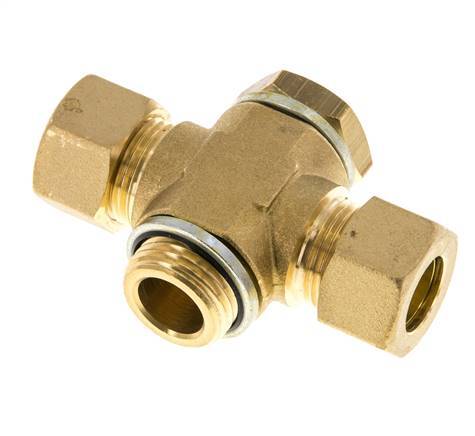

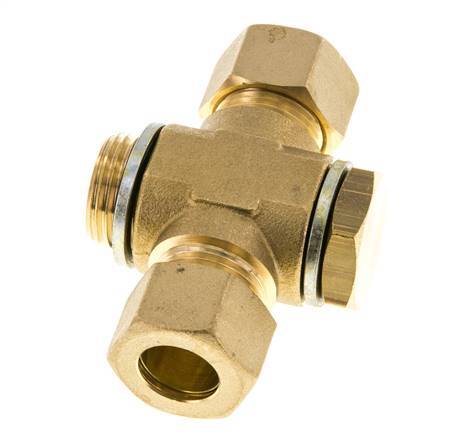

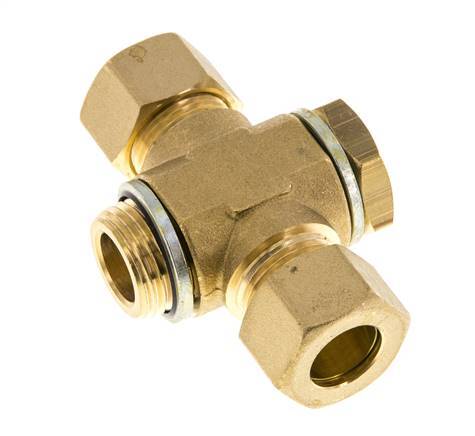

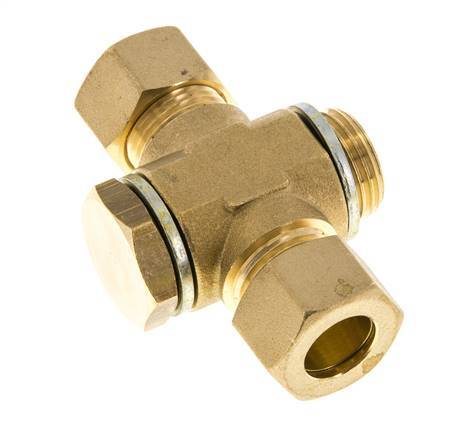

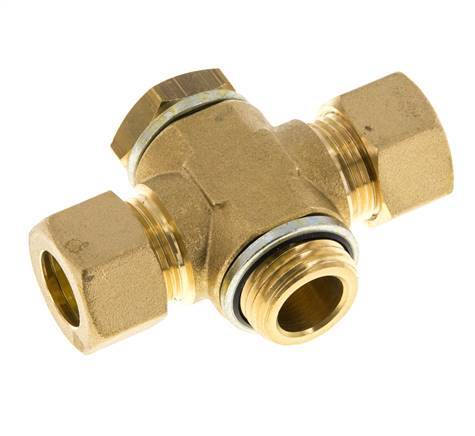

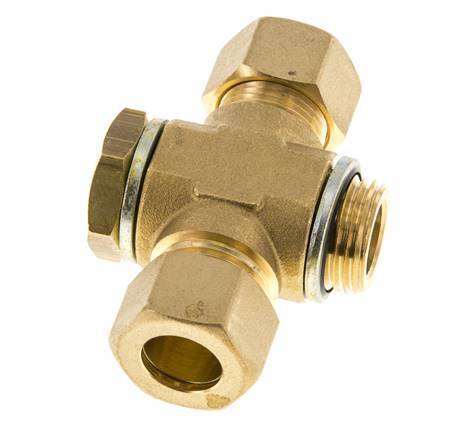

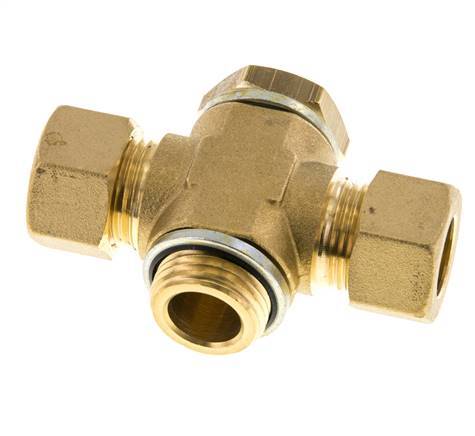

14mm & G1/2'' Brass T-Shape Tee Compression Fitting with Male Threads 89 bar Zinc plated Steel, with NBR insert DIN EN 1254-2

14mm & G1/2'' Brass T-Shape Tee Compression Fitting with Male Threads 89 bar Zinc plated Steel, with NBR insert DIN EN 1254-2
Image may vary slightly
See specifications for accurate information.
Reference: F2A2N
Brand: Tameson
This brass Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1
View all
Regular price
$50.87
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 5 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads

This brass Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 14 mm compression ring with a M20x1.5 union nut. Connection 2 is a 14 mm compression ring with a M20x1.5 union nut. Connection 3 has male G 1/2 inch threads. The seal material is Zinc plated steel, with NBR insert. The maximum pressure is 89 bar (1291 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN 1254-2.

Pros:

  • Adheres to DIN EN 1254-2
  • Suitable for neutral and non-corrosive media

Cons:

  • The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)
