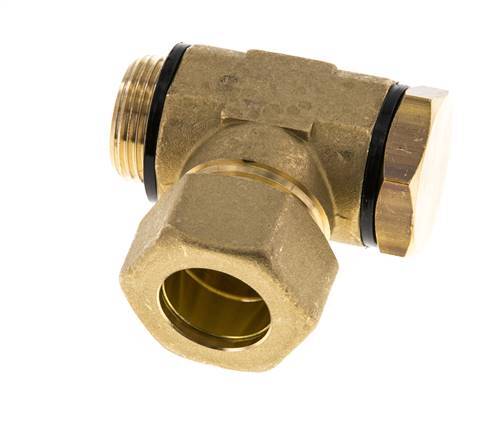

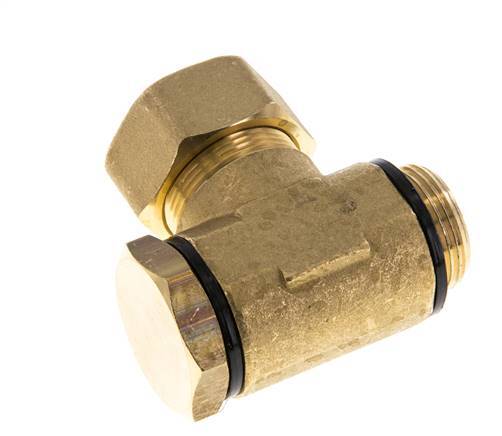

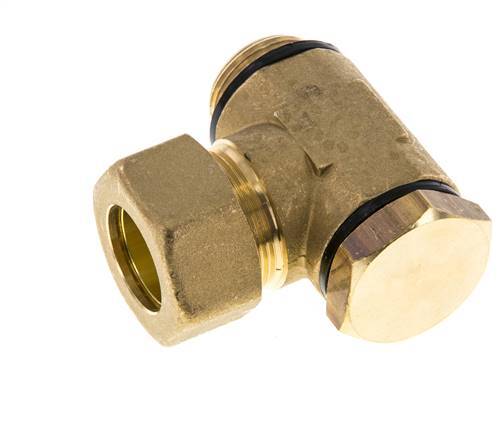

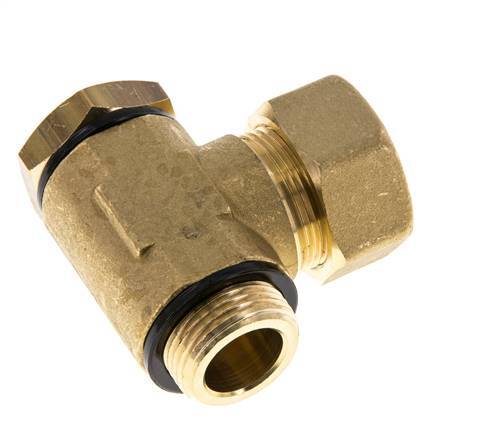

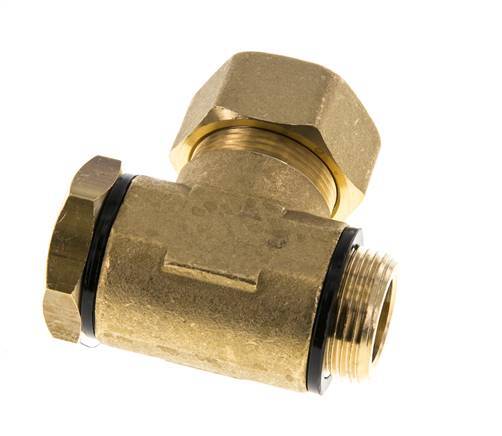

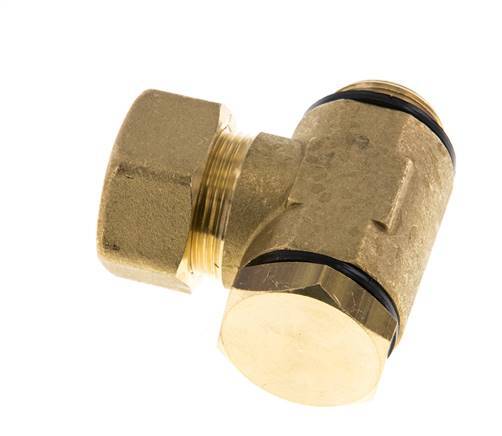

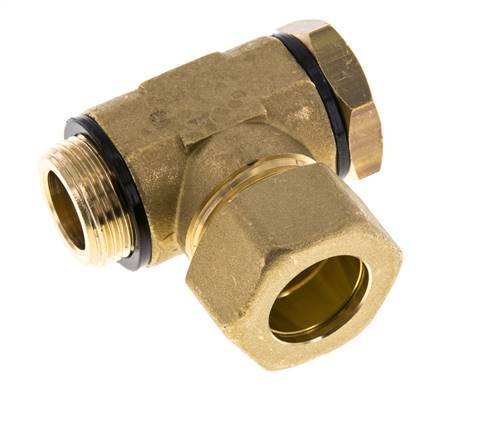

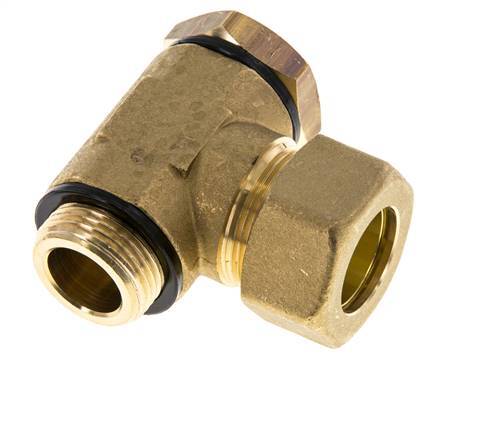

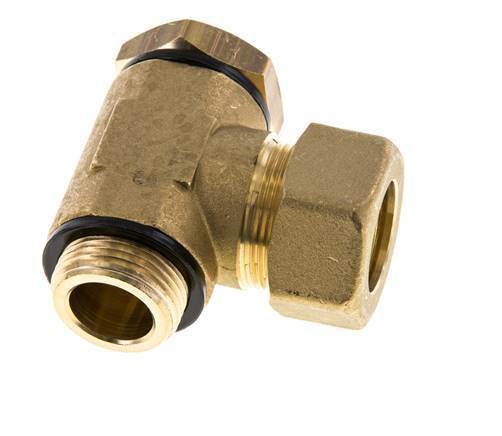

22mm & G3/4'' Brass Swivel Joint Compression Fitting with Male Threads 54 bar Polyamide DIN EN 1254-2

This brass elbow swivel joint is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 22 mm compression ring with a M30x1.5 union nut. Connection 2 has male G 3/4 inch threads. The seal material is Polyamide. The maximum pressure is 54 bar (783 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN 1254-2.

Pros:

• Adheres to DIN EN 1254-2
• Suitable for neutral and non-corrosive media

Cons:

• The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)
