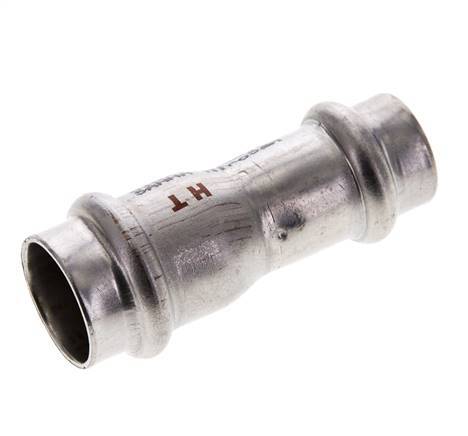

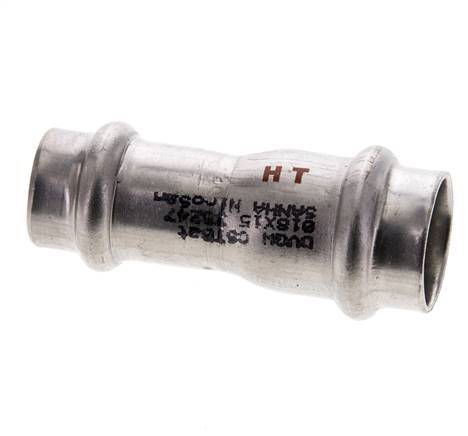

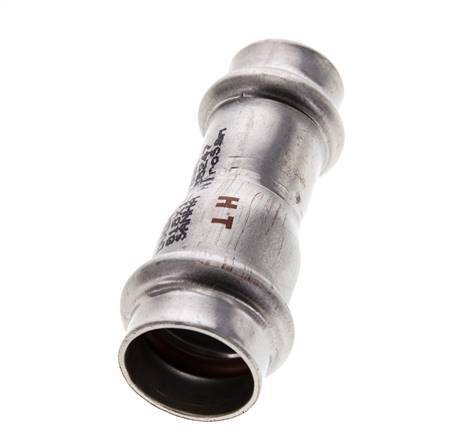

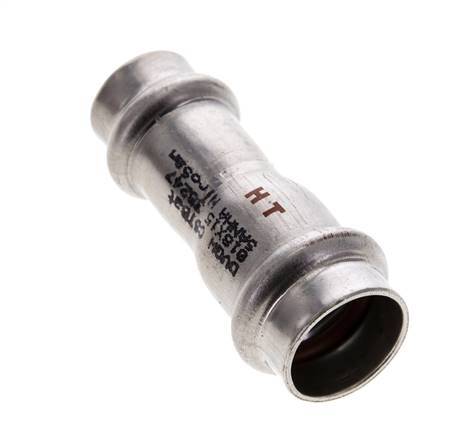

Press Fitting - 15mm Female & 18mm - Stainless Steel
Image may vary slightly
See specifications for accurate information.
Reference:
F29S9
Brand:
Tameson
This is a reducing press fitting made from stainless steel 1.4404. The fitting has two female press ports. Connection 1 and 2 are designed for a tube
- Regular price
- $47.69 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days
Description
Specifications
Description
This is a reducing press fitting made from stainless steel 1.4404. The fitting has two female press ports. Connection 1 and 2 are designed for a tube with an outer diameter of 15 mm and 18 mm. The fitting has an FKM sealing ring. The maximum pressure is 40 bar (580 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 61 mm.
Pros:
- The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
- Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
- Stainless steel material has better chemical resistance than other materials
