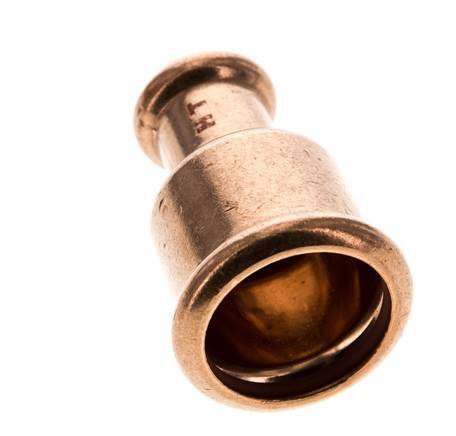

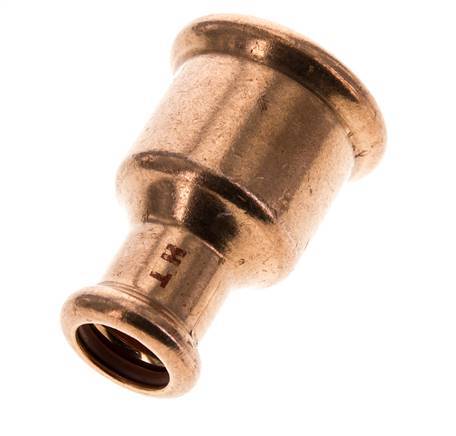

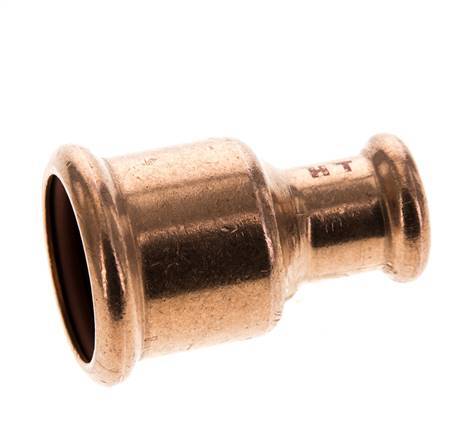

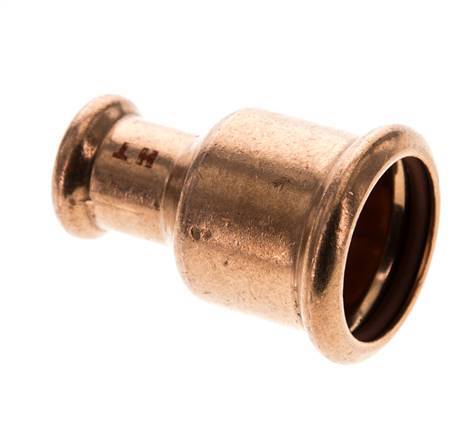

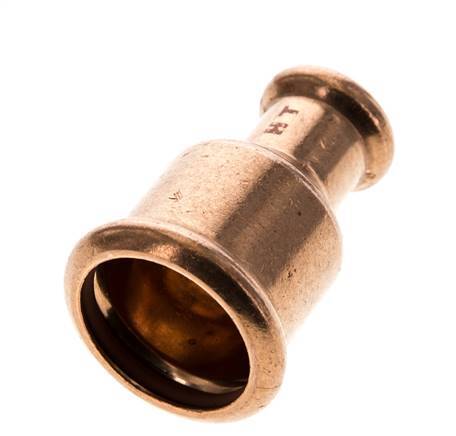

Press Fitting - 15mm Female & 28mm - Copper alloy
Image may vary slightly
See specifications for accurate information.
Reference:
F29RY
Brand:
Tameson
This is a reducing press fitting made from copper alloy. The fitting has two female press ports. Connection 1 and 2 are designed for a tube with an ou
- Regular price
- $27.94 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days
Description
Specifications
Description
This is a reducing press fitting made from copper alloy. The fitting has two female press ports. Connection 1 and 2 are designed for a tube with an outer diameter of 15 mm and 28 mm. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 54 mm.
Pros:
- The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
- Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
