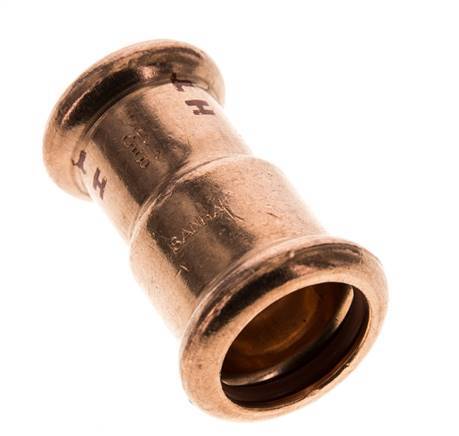

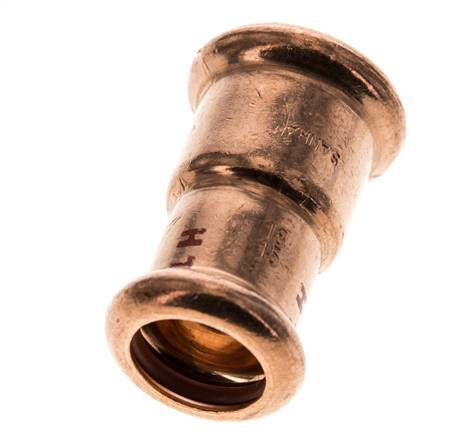

Press Fitting - 15mm Female & 18mm - Copper alloy

This is a reducing press fitting made from copper alloy. The fitting has two female press ports. Connection 1 and 2 are designed for a tube with an outer diameter of 15 mm and 18 mm. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 42 mm.

Pros:

• The FKM seal is suitable for oil bearing compressed air and water/glycol mixtures
• Can be pressed using all standard die sets and slings, which correspond to the original pressing contours M, V and SA
