Reference: F29CB
Brand: Tameson

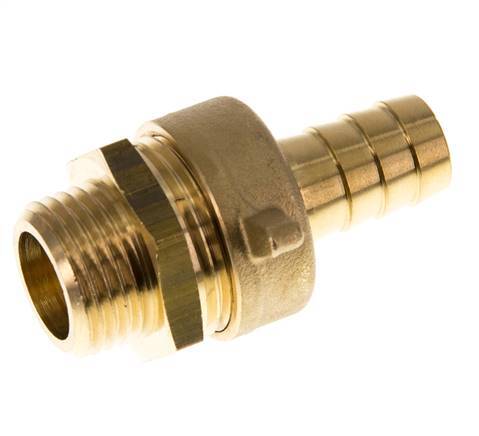

This brass hose screw-in connection is designed with a hose pillar and a male thread. Connection 1 is hose pillar, designed for a hose with an inner diameter of 13 mm (1/2 inch). Connection 2 has G 1/2 inch male threads. It has a conical sealing on threaded connection. The seal material is NBR. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from 0 to 70 °C (32 to 158 °F).

View all
$15.97
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 105 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

501 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This brass hose screw-in connection is designed with a hose pillar and a male thread. Connection 1 is hose pillar, designed for a hose with an inner diameter of 13 mm (1/2 inch). Connection 2 has G 1/2 inch male threads. It has a conical sealing on threaded connection. The seal material is NBR. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from 0 to 70 °C (32 to 158 °F).

Pros:

  • It has a conical sealing on threaded connection
  • It has union nut to screw hose pillar connection with threaded connection point
  • Suitable for neutral and non-corrosive media

Downloads

Specifications

Thread
1/2 inch
Hose pillar connection
1/2 inch (12.7 mm)
Connection type
Outer thread cylindrical BSPP-G, Hose pillar
Material
Housing material.
Brass
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
10
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
0
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
70
Fitting features
With wing union nut
Type of sealing
Conical sealing
Material connection 1
Brass
Material connection 2
Brass
Shape
Straight
With drain
No
