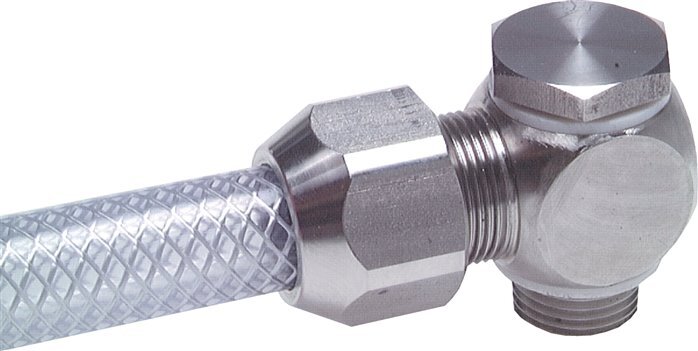

15x9mm & G1/2'' Stainless Steel Elbow Compression Fitting with Male Threads 10 bar PTFE
This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 15x9 mm compression ring. Connection 2 has male G 1/2 inch threads. The seal material is PTFE. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -40 to 200 °C (-40 to 392 °F).
- Regular price
- $153.54
Description
This stainless steel 1.4571 elbow screw in connection is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 15x9 mm compression ring. Connection 2 has male G 1/2 inch threads. The seal material is PTFE. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -40 to 200 °C (-40 to 392 °F).
Pros:
- Frequent assembly and disassembly possible
- No hose clip or projecting mesh wires of the metal braid
- Stainless steel material has better chemical resistance than other materials
Cons:
- This fitting can only be used with hoses made of polypropylene, PVDF, aluminium or stainless steel
