Reference: F28T5-X2
Brand: Tameson

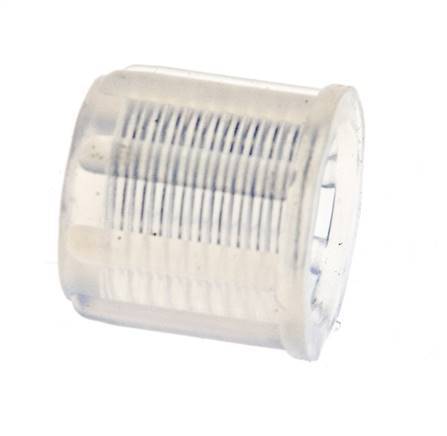

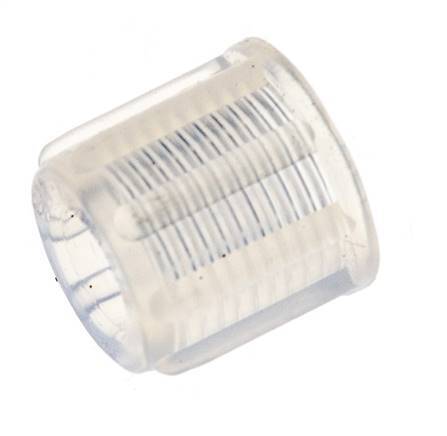

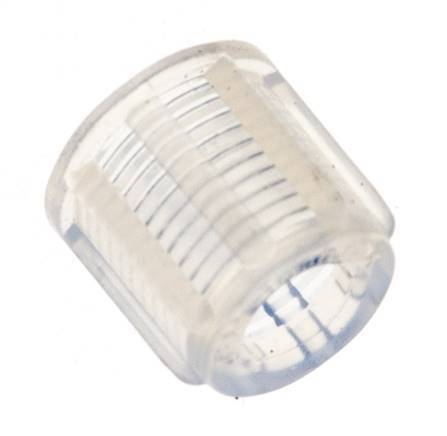

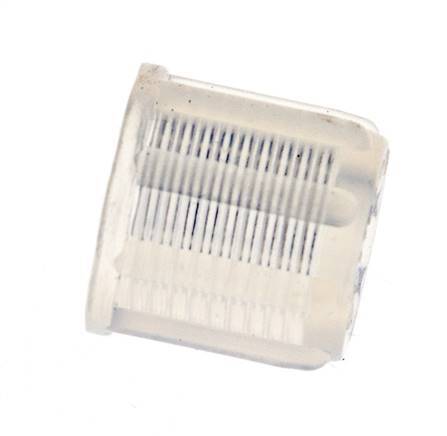

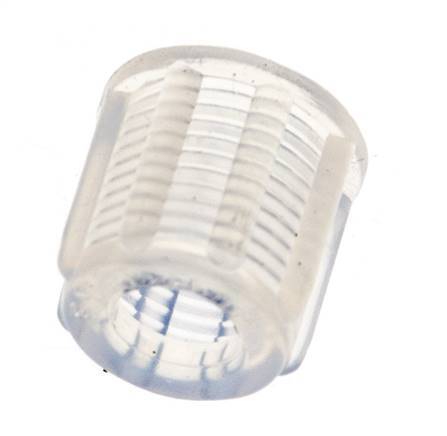

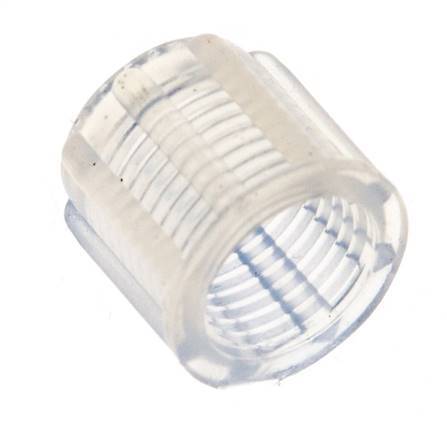

This pfa union nut (female threads) is designed to be used with a cutting ring fitting. Suitable for hoses with an outer x inner diameter of 6x4 mm. The nut is suitable for temperatures from -40 to 140 °C (-40 to 284 °F).

Contains 2 pieces

View all
$10.03
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 15 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This pfa union nut (female threads) is designed to be used with a cutting ring fitting. Suitable for hoses with an outer x inner diameter of 6x4 mm. The nut is suitable for temperatures from -40 to 140 °C (-40 to 284 °F).

Pros:

  • The union nut is knurled

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
M10 x 1
Push-on connection
Size of the push-on connection port.
4x6 mm
Connection type
Inner thread metric, Cutting ring
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
PFA
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-40
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
140
Approval
Certifications or approvals indicating safety, quality, or performance standards met.
FDA
Size of threaded connection [inch]
M10 x 1
