Reference: F28RH-X2
Brand: Tameson

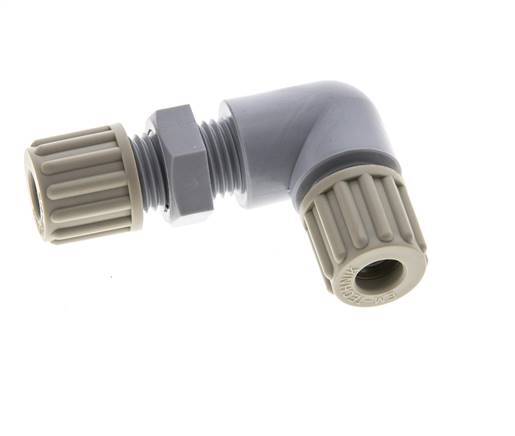

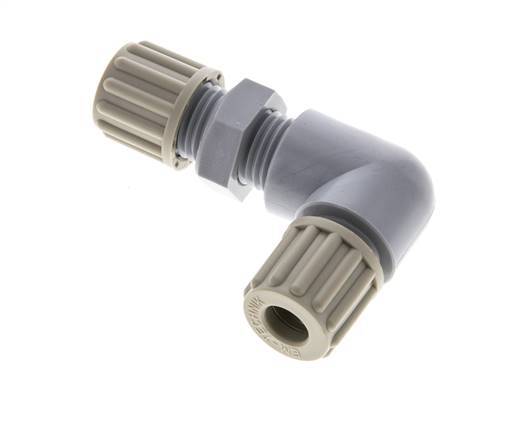

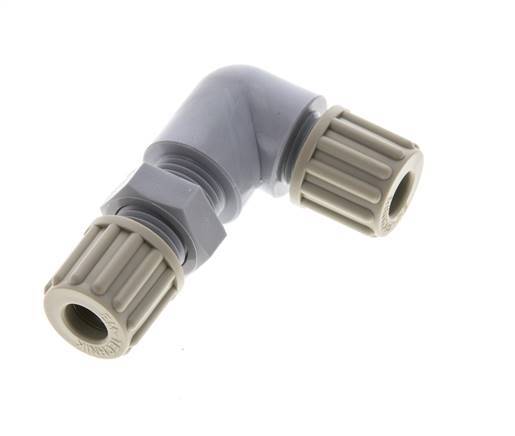

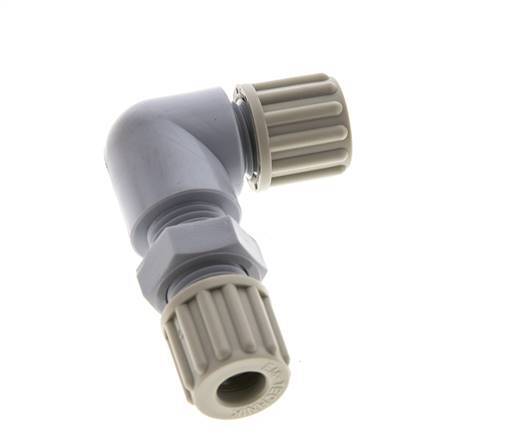

This pa elbow screw connection is designed with two compression ring connection points. Connection 1 is a 8x6 mm compression ring. Connection 2 is a 8x6 mm compression ring. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from 5 to 60 °C (41 to 140 °F). The bulkhead thread has an M 14x1.5 thread with a length of 11 mm.

Contains 2 pieces

View all
$15.72
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 36 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This pa elbow screw connection is designed with two compression ring connection points. Connection 1 is a 8x6 mm compression ring. Connection 2 is a 8x6 mm compression ring. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from 5 to 60 °C (41 to 140 °F). The bulkhead thread has an M 14x1.5 thread with a length of 11 mm.

Pros:

  • It can be used for very soft hoses, liquids, for strong movements between hose and connection or necessary chemical resistance

Cons:

  • Since it has a compression ring connection, it can only be used once
  • It cannot be used with PTFE hoses

Downloads

Specifications

Compression ring connection (mm)
Size of the compression connection port
8
Hose inside x outside
6x8 mm
Connection type
Compression ring
Material
Housing material.
Polyamide (PA)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
10
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
5
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60
Fitting features
Bulkhead
Bulkhead length (mm)
11
Bulkhead nut
M14 x 1.5
Material connection 1
Polyamide (PA)
Material connection 2
Polyamide (PA)
Shape
Elbow
Bend angle (°)
90
With drain
No
